BRAND-NEW
17TH GENERATION · 2U STORAGE

Dell PowerEdge R570

Name: Dell PowerEdge R570
Brand: Dell
Availability: InStock

2U single-socket rack server built around drive capacity

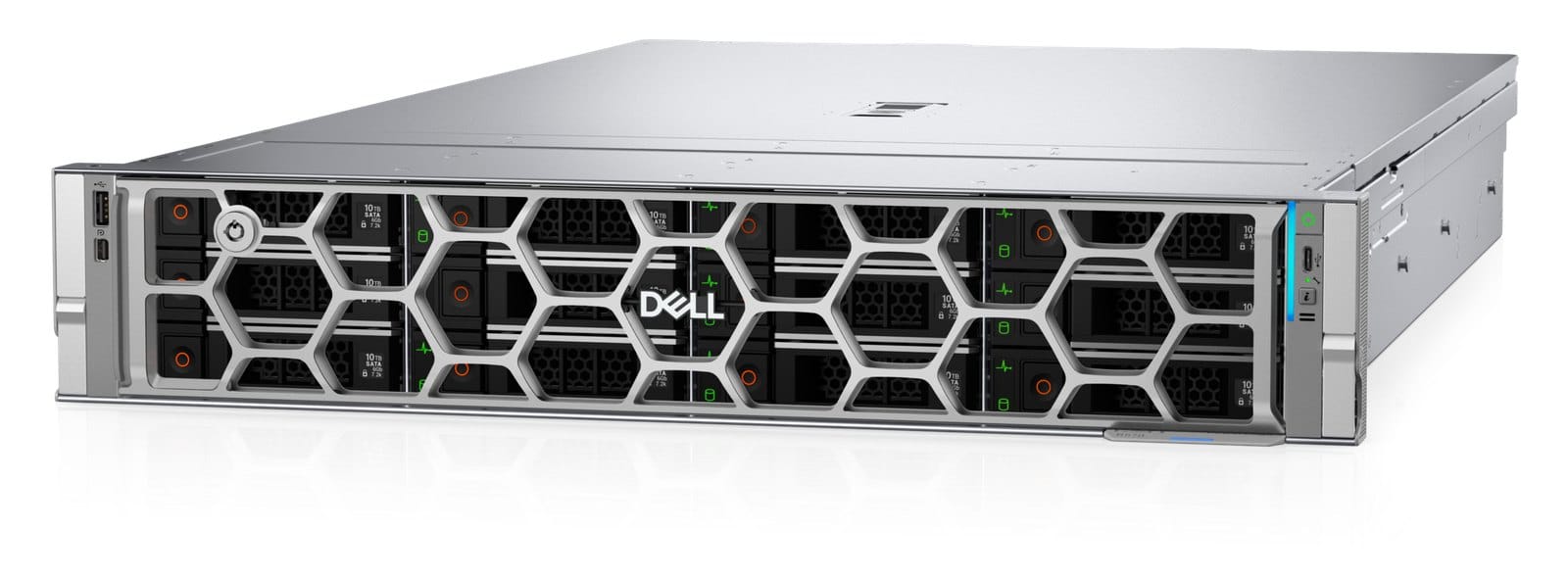

Dell PowerEdge R570 2U single-socket rack server

RAW CAPACITY

384 TB

12 × 3.5" SATA RAID

ALL-FLASH

36 × E3.S

32 front + 4 rear Gen5

CPU

Up to 144 cores

One Xeon 6, E/P-core

GPU

3 × 400 W

Double-wide, or 4×75W SW

Request a Quote
Chat on WhatsApp

The Dell PowerEdge R570 is the capacity-focused member of Dell’s 17th-generation family. Where the 1U R470 trades depth for rack density, the R570 uses a 2U chassis to do the opposite: it holds up to 12 large 3.5-inch drives (384 TB in a single SATA RAID array) or, on the all-flash side, up to 32 front E3.S Gen5 NVMe devices (up to 1966.08 TB) plus four more at the rear. One Intel Xeon 6 processor — E-core for core count, P-core for frequency — drives it all under a single software licence. The result is a storage-dense, single-socket node for software-defined storage, scale-out databases, medium-density virtualisation and VDI.

Choose the backplane: capacity or all-flash

The R570 is ordered around one of several front backplanes, so the first decision is the media — not the CPU. These are the factory configurations from the Dell specification sheet:

HIGH CAPACITY · HDD

12 × 3.5-inch

Up to 384 TB per SATA RAID array
SATA enterprise HDD
Ideal for bulk, backup, archive and SDS

ALL-FLASH · NVMe

8 / 16 / 32 × E3.S

Up to 1966.08 TB with 32 × E3.S
PCIe Gen5 NVMe, hot- or cold-aisle
Up to 4 extra rear E3.S (245.76 TB)

2.5-INCH MIXED

8 / 16 / 24 × 2.5-inch

Up to 24 SATA/Universal drives (92.16 TB)
8 × 2.5" NVMe option available
Balanced tiered storage

BOOT

BOSS-N1 M.2

Up to 2 × M.2 NVMe for the OS
Separates boot from data drives
PERC H365i / H965i for data RAID

Specifications at a glance

Form factor	2U rack server (86.8 mm height, 802.38 mm depth with bezel)
Processor	One Intel Xeon 6 — E-core up to 144 cores, P-core up to 86 cores (R1S)
Memory	16 DDR5 slots up to 6400 MT/s; 1 TB (E-core) / 4 TB (P-core R1S)
Front drive bays	Up to 12 × 3.5", 8/16/24 × 2.5", or 8/16/32 × E3.S Gen5
Rear bays	Up to 4 × E3.S Gen5 NVMe
RAID controllers	PERC H365i / H965i (internal); H965e / HBA 465e (external); BOSS-N1 boot
Expansion	Up to six PCIe slots (x16 connector), plus up to two OCP 3.0 NICs
GPU support	Up to 3 × 400W double-width or up to 4 × 75W single-wide
Power supplies	800 / 1100 / 1500 / 1800 W hot-swap redundant; 1400 W -48VDC option
Cooling	Air cooled, up to six hot-plug fans
Management	iDRAC10 with Redfish, RACADM, iDRAC Direct and iSM

E-core or P-core for a storage node

E-CORE · 6700E

Throughput & density

Up to 144 efficiency cores with high memory capacity (1 TB RDIMM). Best for software-defined storage, scale-out databases and many parallel VMs where aggregate throughput beats per-core speed.

P-CORE · 6700P (R1S)

Frequency & latency

Up to 86 performance cores at higher clock, with up to 4 TB when the R1S option is selected. Best for latency-sensitive databases, VDI and licensed software priced per host.

How it compares

Model	Form / sockets	Max cores	Top storage	GPU
R570	2U · 1 socket	144	384 TB / 36 E3.S	3 × 400W
R470	1U · 1 socket	144	18 NVMe/E3.S	4 × 75W
R670	1U · 2 sockets	288	Front NVMe	—
R770	2U · 2 sockets	172 / 288	Up to 44 NVMe	2 × 450W
R760	2U · 2 sockets	128	8/16/24 bays	—

Condition

Brand-new, current-production units supplied as new with the full 3-year warranty from Beijing Xinchuan Technology Co., Ltd.

Testing

Each server is assembled, BIOS/firmware updated and stress-tested in our workshop before dispatch, with iDRAC logs available on request.

Warranty

A 3-year warranty covering parts and replacement, backed by responsive technical support from our team for the full term.

Real units from our workshop

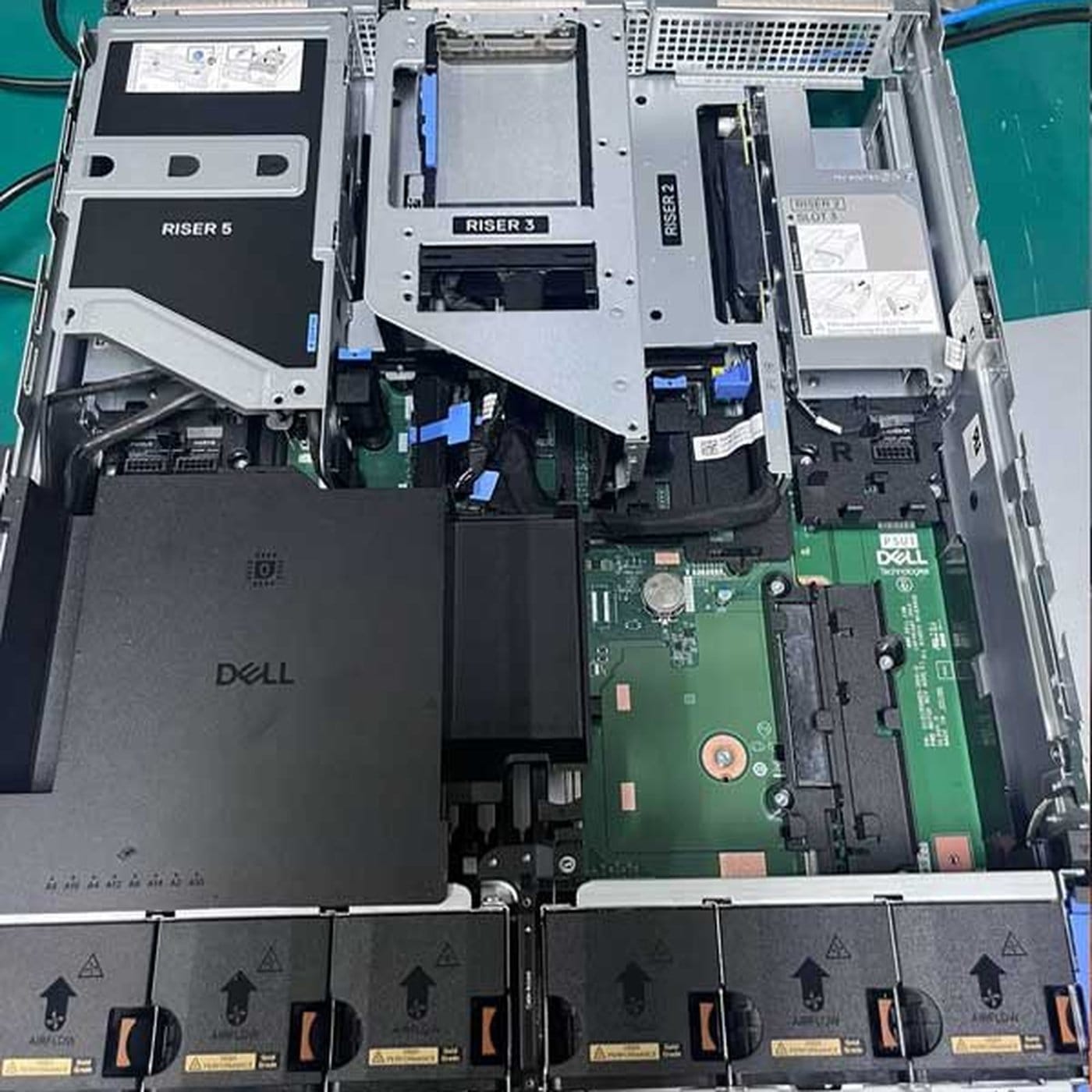

Inside the Dell PowerEdge R570 showing risers, memory slots and fan wall — Riser 2/3/5 cages, 16 DIMM slots and the six-fan cooling wall inside an R570.

Dell PowerEdge R570 front badge with model name — Riser 2/3/5 cages, 16 DIMM slots and the six-fan cooling wall inside an R570.

Where the R570 fits

Software-defined storage nodes that need many bays under one licensed socket.
Scale-out and distributed databases with high per-node core counts.
Medium-density virtualisation and VDI hosts for branch and regional deployments.
Backup, archive and bulk capacity on 12 × 3.5" drives.
Inference and GPU-accelerated workloads with up to three 400W accelerators.

Get a configured R570 quote

Tell us your target capacity, drive type (LFF HDD or E3.S NVMe), preferred Xeon 6 core architecture and GPU needs. We return a build sheet with confirmed SKUs, lead time and export pricing within one working day.

Get a Quote
WhatsApp Us

R570 questions & answers

Is the R570 single-socket or dual-socket?

It is a single-socket server with one Intel Xeon 6 processor. This keeps per-socket software licensing to one node while still offering up to 144 cores, which is why it is popular for storage and virtualisation hosts.

What is the maximum storage capacity of the R570?

On spinning media it supports up to 12 × 3.5-inch SATA drives for 384 TB in a single RAID array. On all-flash E3.S Gen5 NVMe it supports up to 32 front devices (up to 1966.08 TB) plus up to four rear E3.S devices (245.76 TB).

What is the difference between the R570 and R470?

Both are 17th-generation single-socket servers on the same Xeon 6 choices. The R470 is a compact 1U for density, while the R570 is a 2U built for drive capacity, with far more bays and support for three 400W double-width GPUs.

How many GPUs can the R570 hold?

According to the Dell specification sheet, up to three 400W double-width accelerators or up to four 75W single-wide accelerators. Confirm exact accelerator compatibility for your chosen SKU when requesting a quote.

Should I choose an E-core or P-core Xeon 6?

Choose E-core (up to 144 cores) for storage throughput, scale-out databases and many VMs. Choose P-core (up to 86 cores, up to 4 TB with R1S) for higher frequency and lower latency on transactional databases and VDI.

What memory does the R570 support?

It has 16 DDR5 DIMM slots running up to 6400 MT/s and accepts registered ECC RDIMMs only. Maximum memory is 1 TB on E-core and 4 TB on a P-core R1S configuration. MRDIMM 8000 is not supported.
