xFusion FusionServer 1288 V8
Dual Intel Xeon 6 up to 144 cores · 32 DDR5 / MRDIMM slots
Up to 16 E3.S drives · PCIe 5.0 · 8 counter-rotating fans
A next-generation 1U dual-socket rack server built on the Intel Xeon 6 platform. With up to 144 cores per processor, 32 DDR5 or MRDIMM slots, up to 16 E3.S drives, PCIe 5.0 and eight counter-rotating fans, the 1288 V8 delivers exceptional compute density for high-density virtualization, HPC, private cloud and data-center deployments where every rack unit counts.
High-density virtualization
Up to 288 cores and 32 DIMM slots to consolidate very large VM counts in one 1U node.
HPC & AI
Many high-frequency cores with PCIe 5.0 bandwidth for accelerators and fast fabric.
Private cloud
Dense, efficient compute for cloud platforms, containers and microservices at scale.
Software-defined storage
Up to 16 E3.S or NVMe SSDs with high-speed OCP networking for storage nodes.
Technical specifications
The figures below follow the official xFusion FusionServer 1288 V8 product specification. We configure every unit to your exact requirements.
| Form factor | 1U dual-socket (1U2P) rack server |
|---|---|
| Processors | 2 × Intel Xeon 6 (6700P / 6500P / 6700E series), TDP up to 350 W; up to 144 cores per processor (up to 288 cores in a 2-socket configuration) |
| Memory | 32 DIMM slots; DDR5 up to 6400 MT/s or MRDIMM up to 8000 MT/s |
| Local storage | Hot-swap 8/10 × 2.5″ SAS/SATA/NVMe, 4 × 3.5″ SAS/SATA, or up to 16 × E3.S SSDs; 2 × M.2 SSDs with hardware RAID |
| RAID controller | RAID 0, 1, 10, 5, 50, 6, 60 with supercapacitor cache protection; RAID-level migration, drive roaming and remote web configuration |
| Network | 2 × hot-swappable OCP 3.0 NICs (PCIe 5.0), NCSI and multi-host capable |
| PCIe expansion | Up to 5 PCIe 5.0 slots at the rear (including 2 × OCP 3.0), or up to 5 standard front-cabled slots depending on configuration |
| Cooling | 8 hot-swappable counter-rotating fan modules in N+1 redundancy |
| Power supply | Redundant 1+1 hot-swap PSUs: 900 W / 1500 W / 2000 W / 3000 W Platinum or Titanium, up to 97% efficiency |
| Management | iBMC with dedicated GE management port; Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM and agentless out-of-band operation; optional FusionDirector |
| Security | Power-on and administrator passwords, TPM 2.0, security bezel, secure boot and chassis intrusion detection |
| Operating environment | 5 to 45 ℃ (41 to 113 ℉), ASHRAE A1/A2/A3/A4 compliant |
| Dimensions (H×W×D) | 43 × 447 × 798 mm (1.69 × 17.60 × 31.42 in) |
Performance at a glance
Indicative maximum values based on official xFusion specifications; actual configuration depends on processor, memory and storage selection.

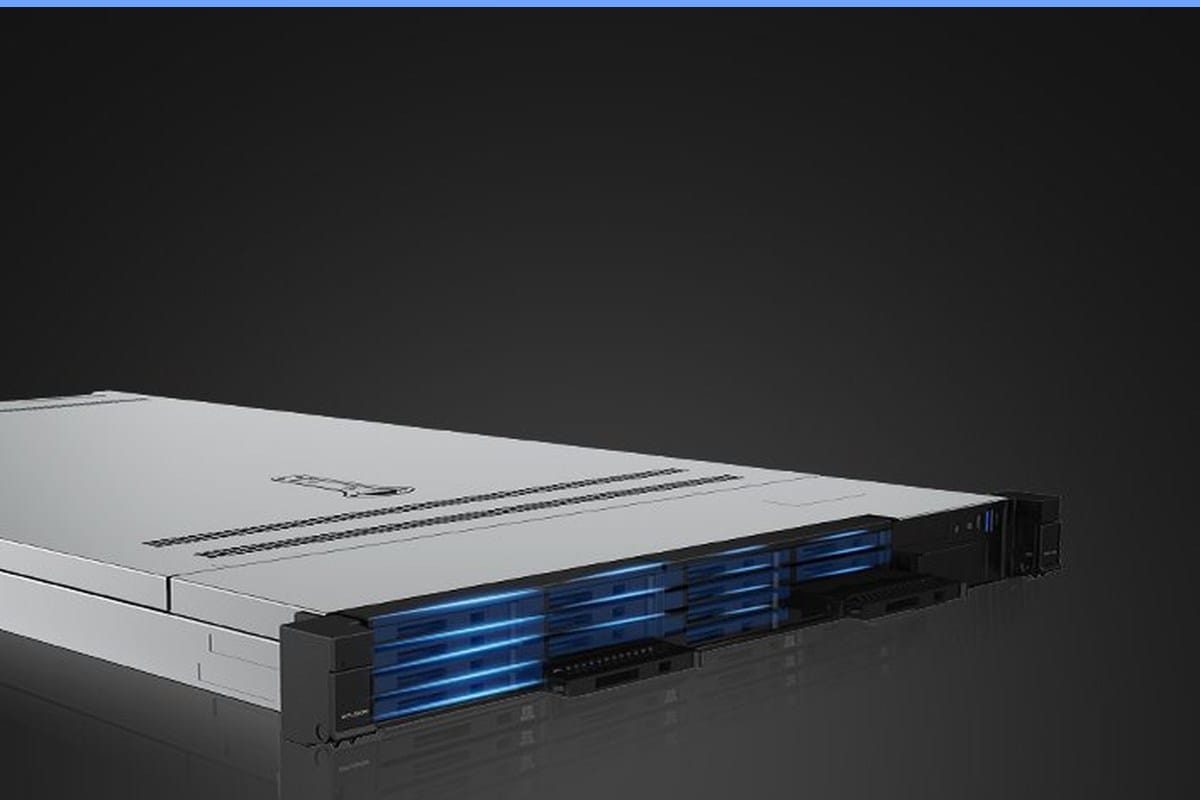

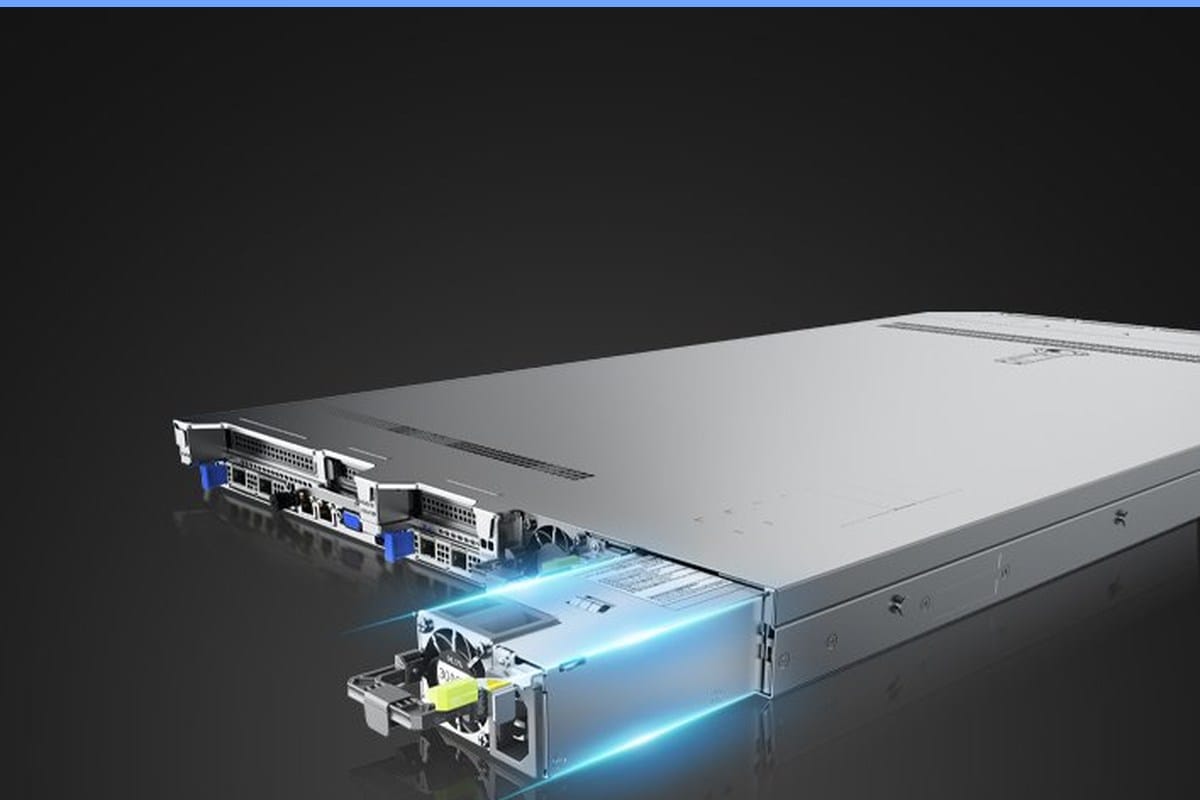

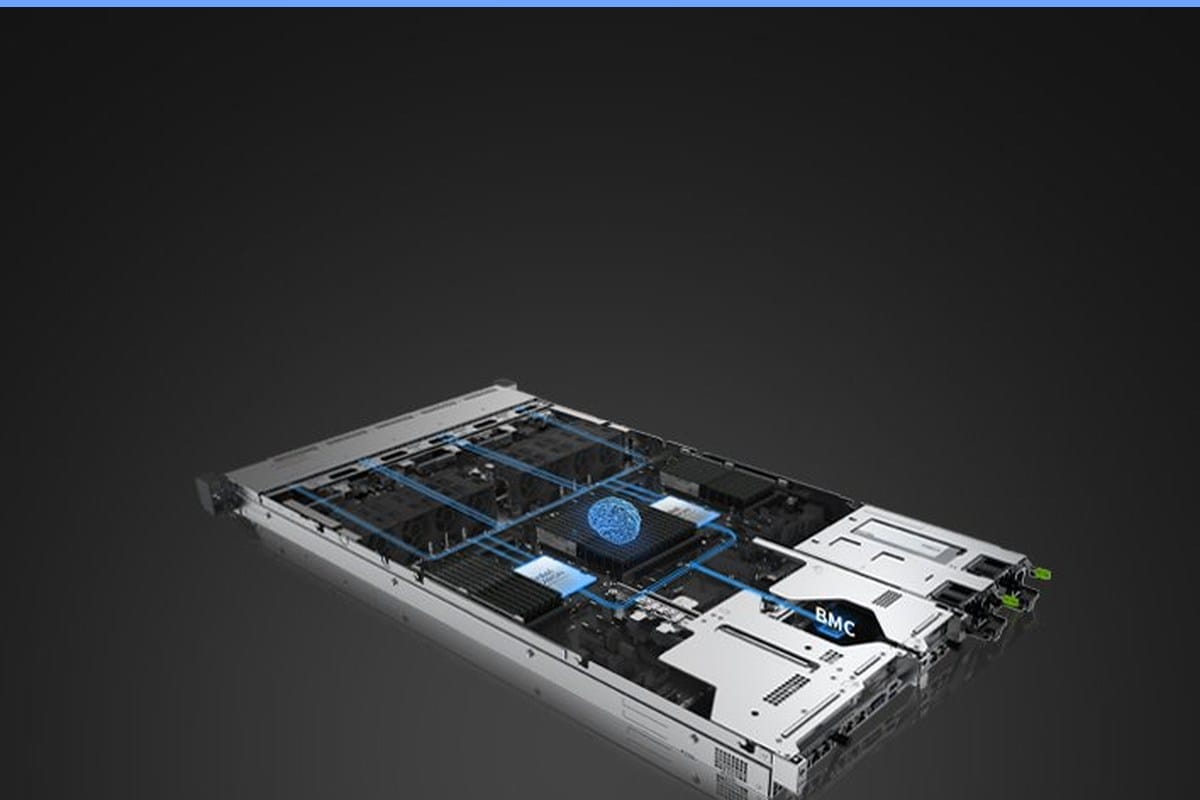

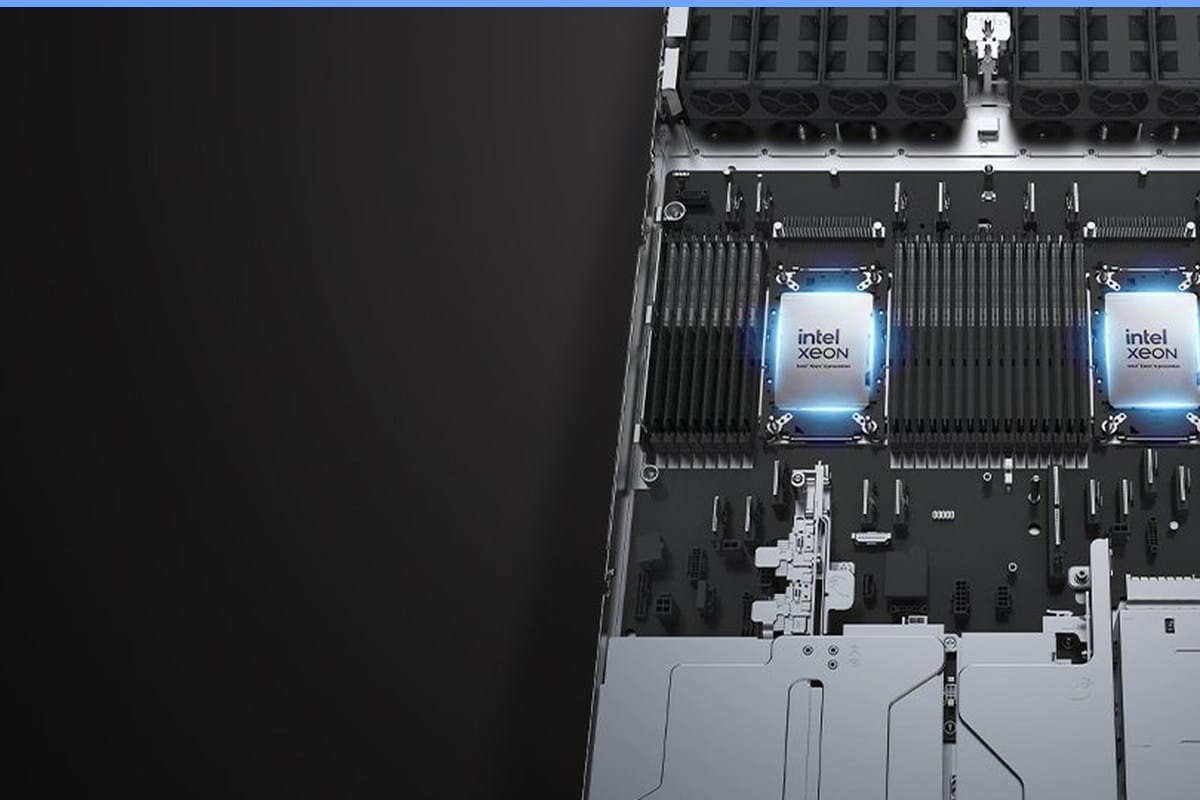

Engineering views of the 1288 V8
The images below are official xFusion engineering renders that illustrate the platform architecture. Each server we deliver is then configured, tested and photographed in our own workshop before dispatch.
Example configurations
General-purpose node
- 1 × Xeon 6 (6500P base core)
- 8 × 32 GB DDR5-6400
- 2 × 480 GB SATA SSD
- OCP dual-port, 900 W PSU
Virtualization host
- 2 × Xeon 6 mid-range 6700P
- 16 × 64 GB DDR5-6400
- 4 × 1.92 TB NVMe/E3.S
- 2 × OCP 25GbE, 1500 W PSU
HPC / dense node
- 2 × high-core Xeon 6 up to 350 W
- 32 × MRDIMM-8000
- Up to 16 E3.S + accelerators
- 100/200GbE fabric, 2000/3000 W PSU
How we prepare every server
Configuration check
We verify CPU, memory, drives and cards against your order and the official spec.
BIOS & firmware
Firmware is updated and BIOS settings (boot order, virtualization, SR-IOV) are applied.
Stress test
CPU, memory and storage are exercised to confirm stability under load.
Storage & RAID
RAID arrays are built and every drive is confirmed healthy with no errors.
Test & record
The unit is tested, serial and labels verified, and photographed for your records.
Export packing
Secure packaging protects the server during international air or sea freight.
Why xFusion
Proven at scale
xFusion servers are deployed across carrier, cloud and enterprise data centers.
Energy efficient
DEMT 3.0 dynamic energy management and up to 97%-efficient PSUs cut OPEX.
Open standards
PCIe 5.0, OCP 3.0 and Redfish make third-party integration straightforward.
Intelligent O&M
iBMC and optional FusionDirector enable remote, automated lifecycle management.
| xFusion 1288 V8 | Previous 1288H V7 | |
|---|---|---|
| Processor platform | Intel Xeon 6, up to 350 W | Xeon Scalable 4th/5th Gen |
| Maximum cores | Up to 144 per socket (288 total) | Fewer cores per socket |
| Memory | 32 DDR5-6400 / MRDIMM-8000 | DDR5 at lower speed |
| Storage | Up to 16 E3.S / NVMe | Fewer E3.S options |
| Expansion | PCIe 5.0, 2 × OCP 3.0 | Earlier PCIe generation |
Buy with confidence
Global B2B shipping
We export to customers worldwide with full export documentation and flexible air or sea freight.
Tested before dispatch
Every unit is configured, stress-tested and photographed before it leaves our workshop.
Responsive support
Our technical team typically responds within one working day, before and after purchase.
Get a configured quote for the 1288 V8
Tell us your CPU, memory, storage and network requirements and we will respond with a tailored configuration and pricing, usually within one working day.
Frequently asked questions
Is the 1288 V8 the newest xFusion 1U server?
Yes. The 1288 V8 is the current-generation 1U dual-socket model, built on the Intel Xeon 6 platform. Earlier 1U options in the same family are the 1288H V7 and 1288H V6.
Which processors does it support?
It accepts two Intel Xeon 6 processors in the 6700P, 6500P or 6700E series with a TDP up to 350 W and up to 144 cores per processor.
How much memory can it take?
It has 32 DIMM slots supporting DDR5 at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s.
What drive configurations are available?
It supports 8 or 10 hot-swap 2.5″ SAS/SATA/NVMe drives, 4 × 3.5″ drives, up to 16 E3.S SSDs, plus 2 × M.2 SSDs.
How many PCIe slots does it provide?
It offers up to five PCIe 5.0 slots at the rear (including two OCP 3.0 connections), or up to five front-cabled slots depending on the chassis configuration.
What networking is built in?
Networking is delivered through two hot-swappable OCP 3.0 NICs over PCIe 5.0, with NCSI and multi-host support, so you can select the exact port speed and fabric you need.
How is the 1U chassis cooled?
It uses eight hot-swappable counter-rotating fan modules in N+1 redundancy to cool the high-density board across its 5 to 45 ℃ operating range.
What power supplies are offered?
Redundant 1+1 hot-swap PSUs are available at 900 W, 1500 W, 2000 W and 3000 W in Platinum or Titanium efficiency, reaching up to 97% conversion.
Are the photos of the actual server?
The engineering images on this page are official xFusion renders illustrating the design. Every unit we deliver is then configured and tested in our workshop, and we share photos of your actual server before dispatch.
How do I get a quote and how long does it take?
Send us your configuration through the contact page and we will reply with a tailored quote, usually within one working day, including export and shipping options.
