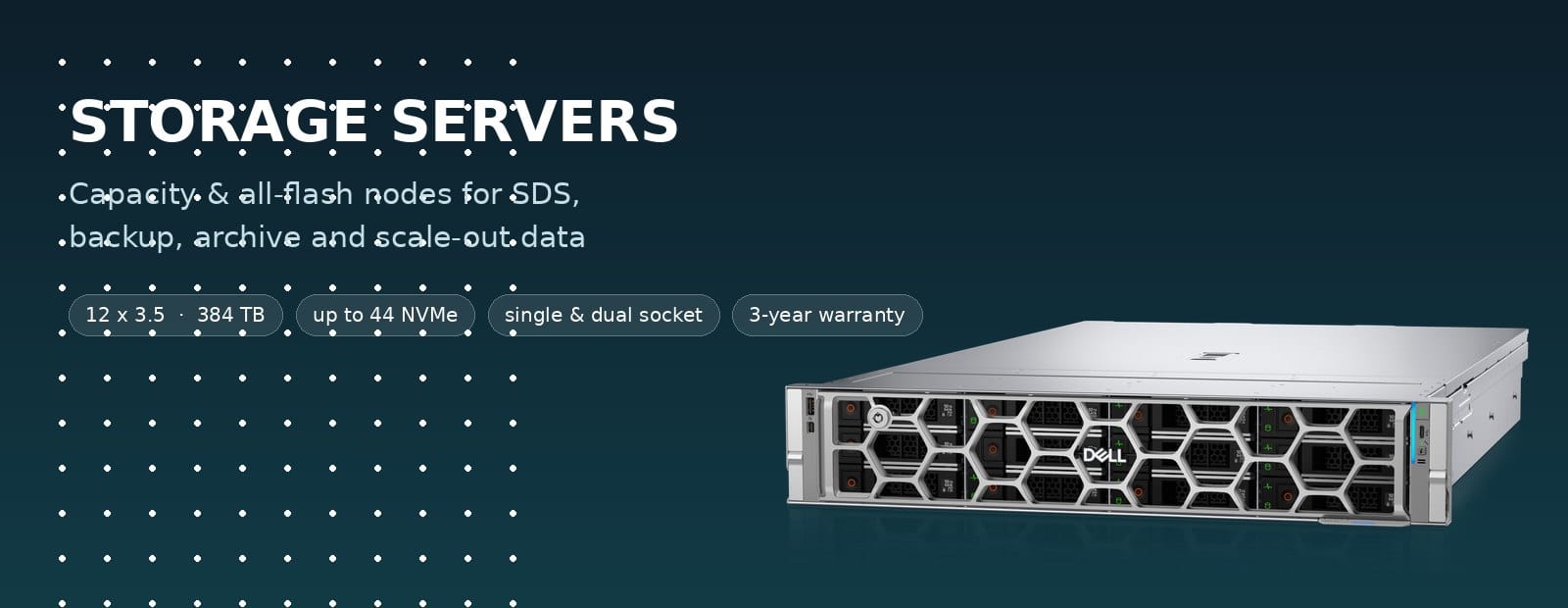

Storage Servers — Dell PowerEdge for SDS, Backup & All-Flash
A shortlist of brand-new, current-generation Dell PowerEdge rack servers chosen for drive capacity and storage throughput. Whether you need terabytes of bulk HDD for backup and archive, or a dense Gen5 NVMe node for software-defined storage and scale-out databases, the models below cover both — on a single socket to save software licensing, or dual sockets for maximum throughput. Browse our Intel Xeon servers and AMD EPYC servers for the full ranges.
FusionServer 5288 storage family
Up to 44 x 3.5-inch drives plus NVMe in 4U. Choose the newest V8, or factory-sealed V7/V6 NOS for cost-effective bulk storage — all with a 3-year warranty.

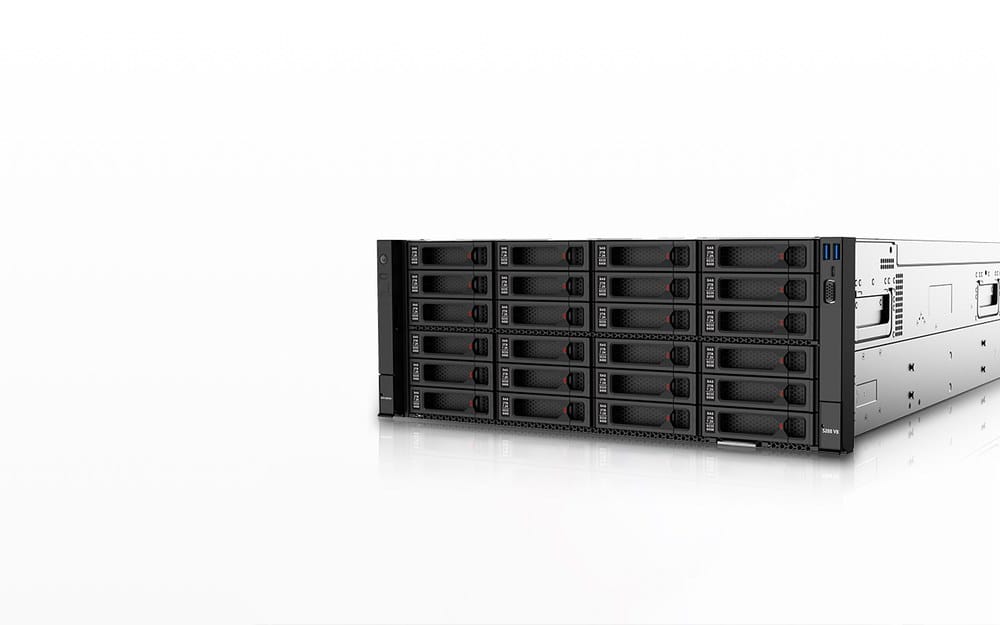

FusionServer 5288 V8
2 × Intel Xeon 6, DDR5-6400 / MRDIMM-8000, 12 PCIe. Up to 44 x 3.5" + 4 NVMe.

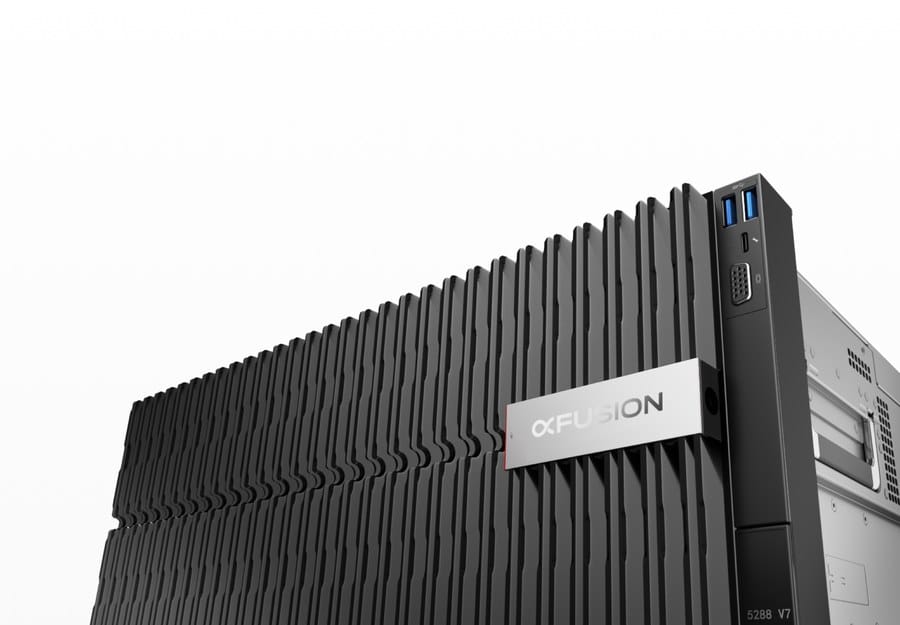

FusionServer 5288 V7
2 × Xeon Scalable (Sapphire Rapids), 32 DDR5-4800, PCIe 5.0. Up to 44 x 3.5" + NVMe.

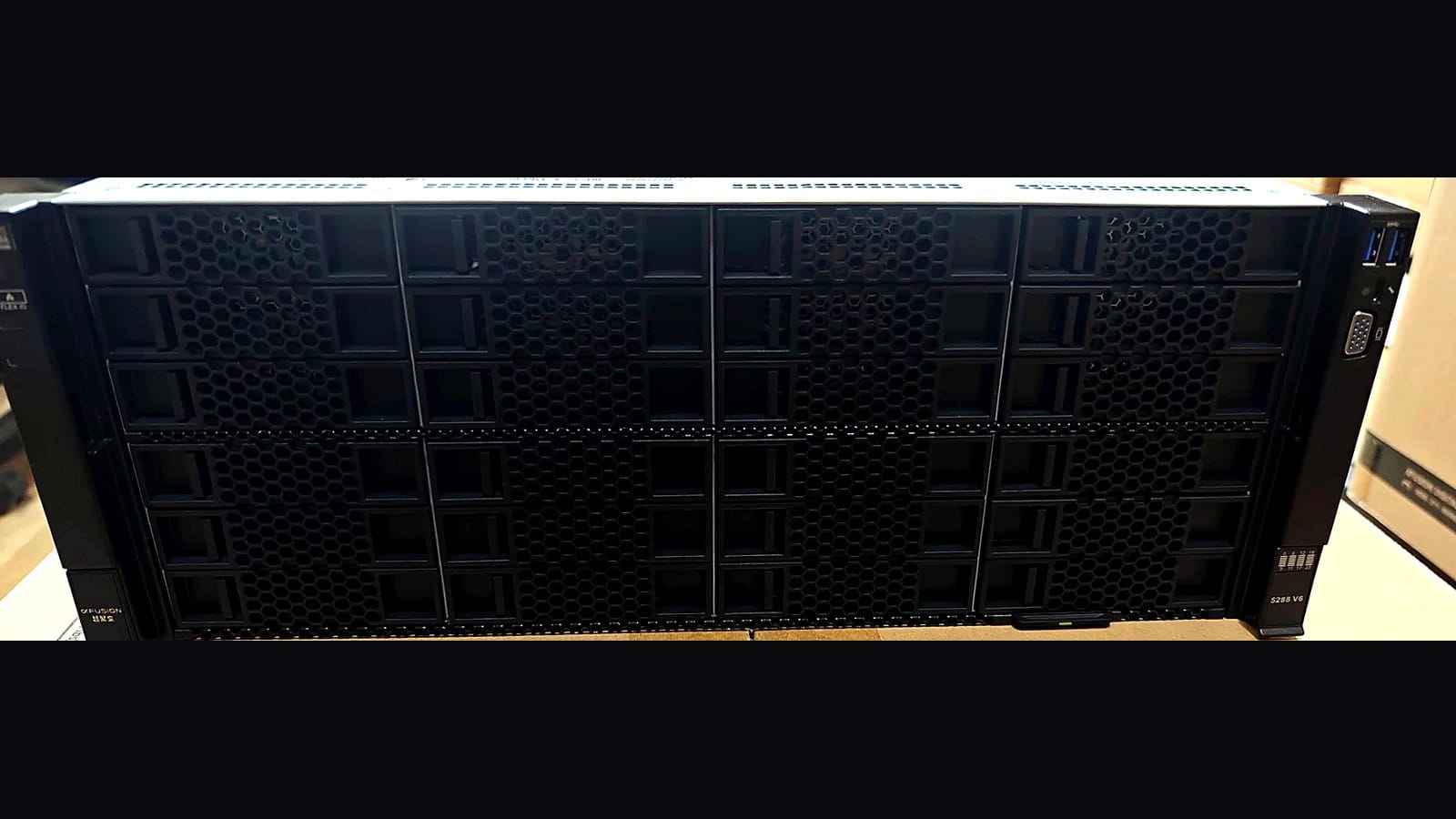

FusionServer 5288 V6
2 × Xeon Scalable (Ice Lake), 32 DDR4-3200, PCIe 4.0. Up to 44 x 3.5" + 4 NVMe.

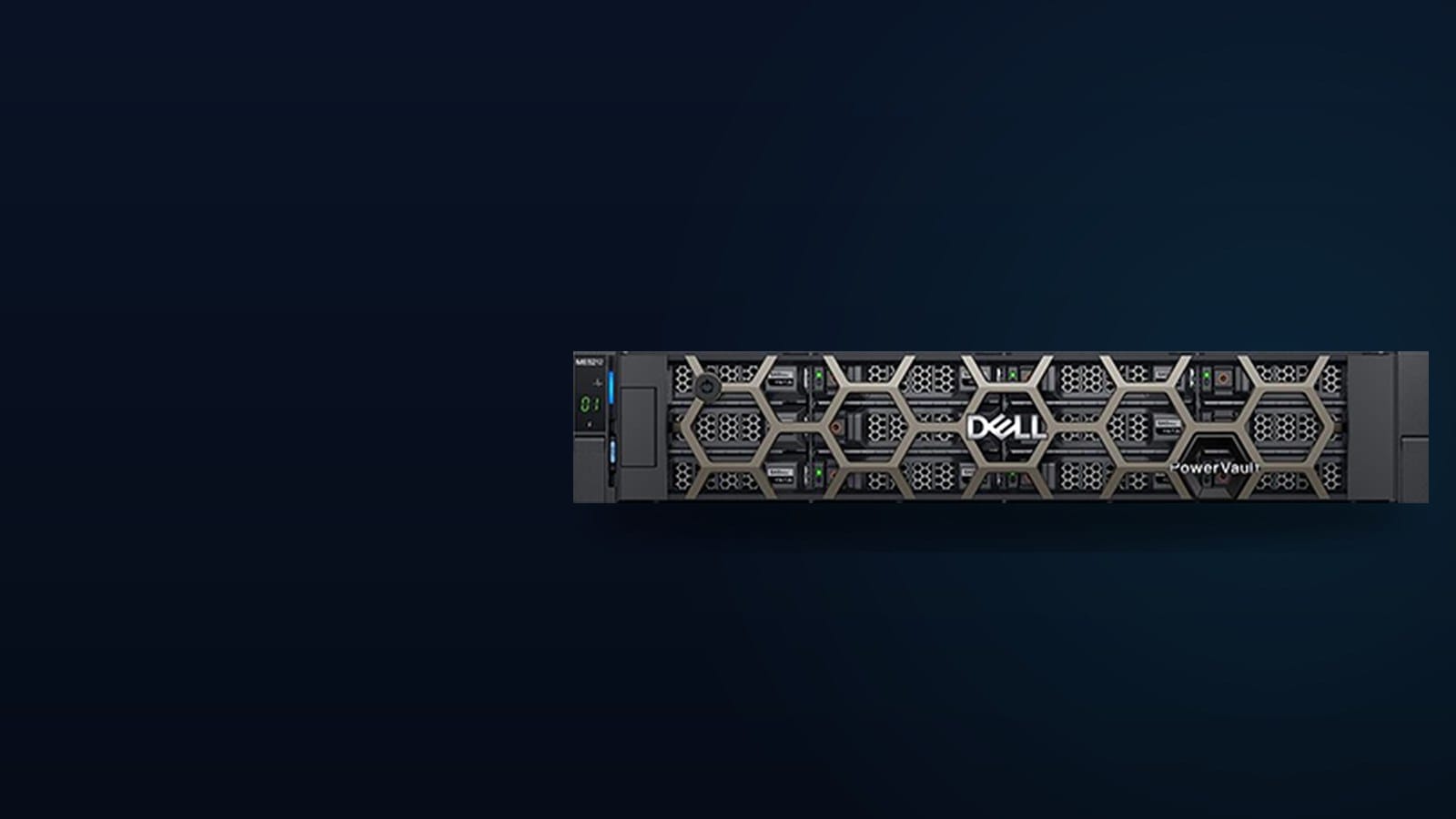

PowerVault ME5200 & MD24 storage
Need shared block storage rather than a server? PowerVault adds dual-controller SAN/DAS arrays and high-density SAS4 JBOD shelves — configured, cabled and delivered with PowerEdge hosts.
- ME5200 intelligent arrays — ME5212 (12 × 3.5"), ME5224 (24 × 2.5") and ME5284 (84 × 3.5") with dual-active Intel Xeon controllers.
- Multi-protocol front end — 32Gb FC, 25Gb/10Gb iSCSI or 12Gb SAS; RAID 1/5/6/10/ADAPT with snapshots, tiering and replication included.
- MD24 SAS4 JBOD — MD2412, MD2424 and the 4U/60-drive MD2460 for direct capacity behind a PowerEdge server, up to 2.4PB.

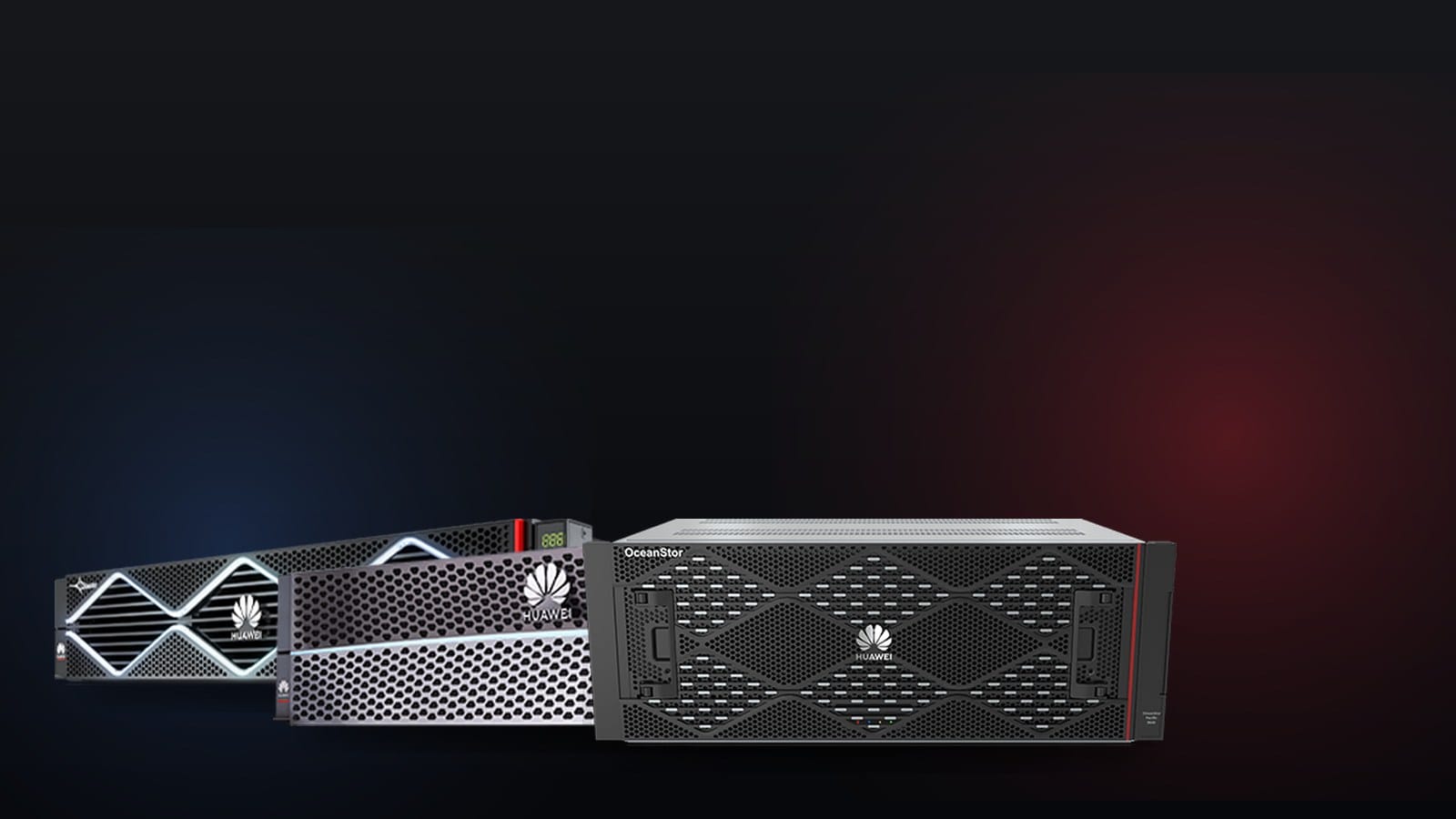

OceanStor enterprise storage
Need dedicated external storage? Huawei OceanStor covers NVMe all-flash arrays, cost-effective hybrid flash and dense distributed scale-out for core databases, virtualization, backup and unstructured data.
- Dorado 5000 all-flash — end-to-end NVMe, 0.05 ms latency and scale-out to 32 controllers for mission-critical workloads.
- OceanStor 5310 hybrid flash — mix NVMe/SAS SSD with high-capacity disks, up to 16 controllers, unified block, file and object.
- Pacific 9546 distributed — high-density 4U scale-out, up to 1,440 TB raw per chassis for HPC, big data and archives.
Choose by workload
Backup, archive & cold data
Maximise low-cost terabytes with up to twelve 3.5-inch enterprise drives in one array.
SDS, databases & fast tier
Pack in Gen5 E3.S or U.2 NVMe for the lowest latency and highest IOPS.
Lowest licensed-node cost
Up to 144 cores on one socket means one software licence per storage node — ideal for per-socket licensed SDS and virtualisation stacks.
Storage servers compared
| Model | Form / sockets | Max 3.5" bays | Max NVMe | Max cores |
|---|---|---|---|---|
| R570 | 2U · 1 socket | 12 (up to 384 TB) | 36 × E3.S | 144 |
| R470 | 1U · 1 socket | 4 | 18 × E3.S | 144 |
| R7715 | 2U · 1 socket | 12 | 40 × E3.S | 160 |
| R7725 | 2U · 2 sockets | 12 | 40 × E3.S | 192 × 2 |
| R770 | 2U · 2 sockets | — | 44 × E3.S | 144 × 2 |
| R7725xd | 2U · 2 sockets | — | 24 × U.2 | 192 × 2 |
Drive counts are the maximum factory configurations; exact capacity depends on drive size and backplane. All units are brand-new and configured to order.
How these units are supplied
Condition
Brand-new, current-production 17th-generation servers, supplied as new with full documentation.
Assembly & testing
Configured, BIOS/firmware updated and stress-tested before dispatch, with controller and iDRAC details provided.
Warranty
A 3-year warranty provided by Beijing Xinchuan Technology Co., Ltd., with responsive technical support for the full term.
Need help sizing a storage node?
Tell us your usable-capacity target, drive preference (HDD or NVMe), workload and socket/licensing constraint. We return a build sheet with confirmed SKUs, lead time and export pricing within one working day.
Storage server questions
Which Dell PowerEdge is best for a storage server?
For bulk capacity on a single licensed node, the R570 takes 12 × 3.5-inch drives (up to 384 TB). For an all-flash node, the R770 supports up to 44 E3.S NVMe devices, while the R7725xd is purpose-built around 24 U.2 Gen5 drives. The right choice depends on your capacity, media and licensing requirements.
What is the difference between a storage server and a regular server?
A storage server is configured around drive bays, RAID/HBA controllers and storage throughput rather than raw CPU or GPU. Models such as the R570 and R7725 use chassis that accept many large or flash drives, making them suited to software-defined storage, backup and archival roles. A general-purpose server typically has fewer bays and is optimised for compute or virtualisation.
How many drives can the R570 hold?
Up to 12 × 3.5-inch SATA drives for 384 TB in a single RAID array, or on all-flash up to 32 front E3.S Gen5 NVMe plus 4 rear E3.S devices (36 total). It also supports 8, 16 or 24 × 2.5-inch drives depending on the backplane chosen.
Should a software-defined storage node be single or dual socket?
Single-socket models like the R570 give up to 144 cores under one software licence, lowering per-node licensing cost for many SDS stacks. Dual-socket models like the R770 or R7725 add CPU and memory bandwidth for very high-throughput or densely consolidated clusters. Choose based on your workload and how your storage software is licensed.
Can a storage server also run GPUs?
Yes. The R570 supports up to three 400W double-width or four 75W single-width accelerators, so a capacity node can also handle inference or GPU-accelerated tasks. Confirm specific accelerator compatibility with your chosen configuration when requesting a quote.
What warranty and lead time apply?
Every storage server is brand-new and covered by a 3-year warranty from Beijing Xinchuan Technology Co., Ltd. Configured builds are typically quoted with confirmed SKUs, lead time and export pricing within one working day.
