Huawei OceanStor Storage Systems
Dorado all-flash, hybrid flash and Pacific distributed scale-out storage for mission-critical enterprise workloads.
The Huawei OceanStor portfolio covers the full range of enterprise data storage, from end-to-end NVMe all-flash arrays to cost-effective hybrid flash systems and massively scalable distributed storage. This guide compares the families we configure and supply most often, with links to full specifications for each model.
OceanStor storage families

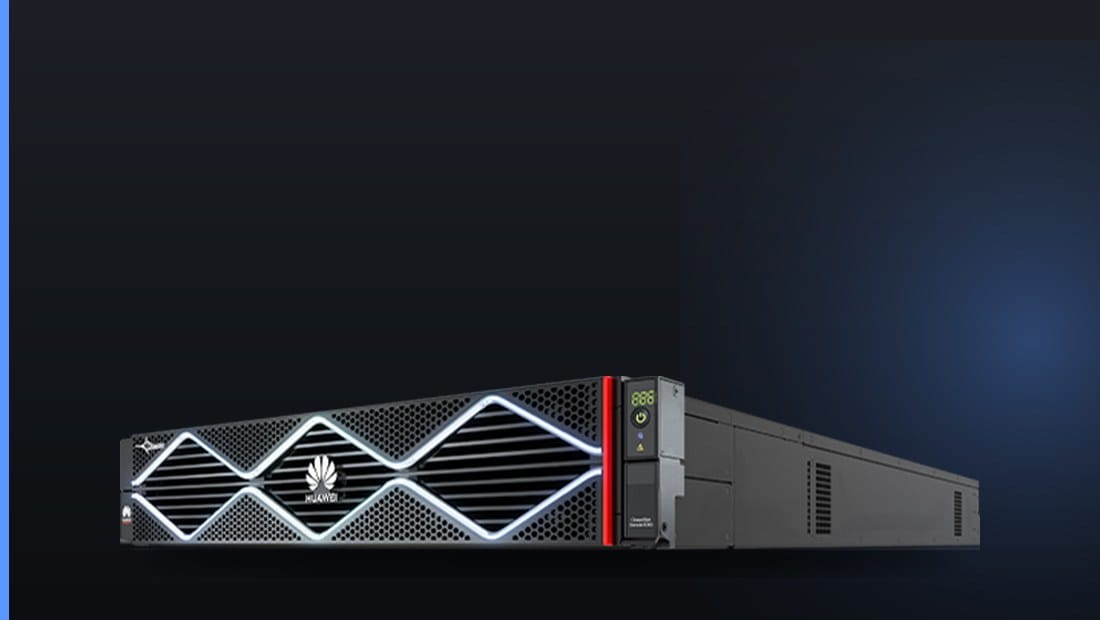

OceanStor Dorado 5000
End-to-end NVMe all-flash array with FlashLink, 0.05 ms latency and scale-out to 32 controllers for mission-critical workloads.

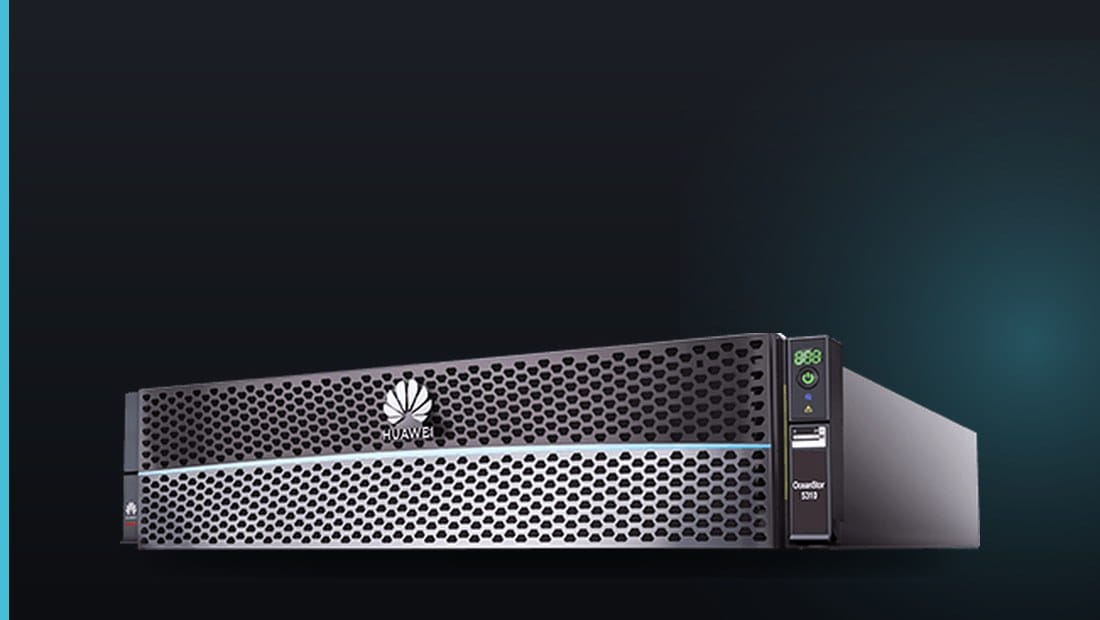

OceanStor 5310
Hybrid flash storage that mixes NVMe/SAS SSDs with high-capacity disks, scales to 16 controllers and converges block, file and object.

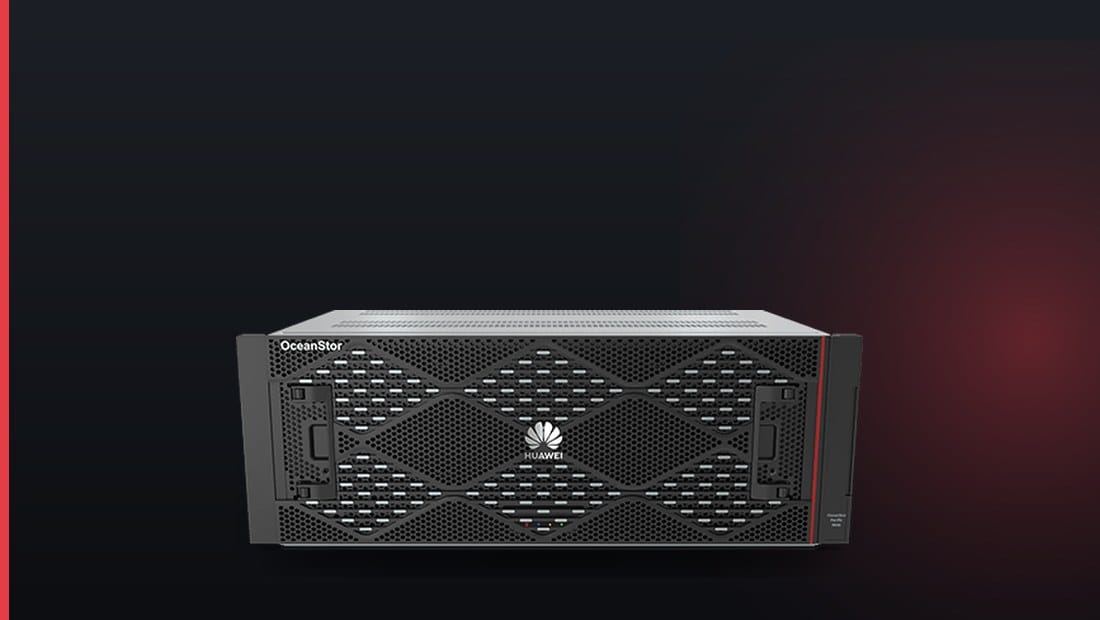

OceanStor Pacific 9546
High-density 4U scale-out appliance with up to 1,440 TB raw capacity per chassis for HPC, big data, backup and archives.
A storage platform for every data profile
Enterprise data is rarely uniform. A core banking or ERP system needs the lowest possible latency and six-nines availability; a general-purpose data center needs flexible, tiered capacity; and a backup, media or research environment needs to store petabytes economically and access them over file and object protocols. OceanStor addresses each profile within one product family, so storage can be selected by workload while sharing common management, data services and disaster-recovery concepts.
Across the portfolio, the same design principles recur: symmetric active-active controllers, flash-aware algorithms, triple-parity or erasure-coded protection, gateway-free active-active and built-in ransomware defenses. That consistency makes it practical to standardize on OceanStor across tiers, from the highest-performance production array to the densest capacity node.
Architecture and platform
End-to-end NVMe
OceanStor systems carry NVMe from the host fabric through controllers to SSDs, replacing SCSI queues with tens of thousands of parallel queues for 0.05 ms latency.
Multi-controller active-active
Controllers operate in fully symmetric designs so that any controller can serve every volume or file system, eliminating single points of control.
Distributed scale-out
Pacific nodes scale in balanced clusters with data and performance growing together across a single namespace.
Kunpeng & palm-sized SSDs
Huawei Kunpeng processors and palm-sized NVMe SSDs deliver high compute and cache density in a compact, efficient footprint.
Software and data services
Data protection
HyperMetro gateway-free active-active, HyperCDP continuous data protection, SmartMigration, remote replication and 3DC/4DC disaster recovery.
Data reduction
SmartDedupe, SmartCompression, thin provisioning, automatic tiering and RAID-TP triple parity for efficiency and resilience.
Security & O&M
HyperEncryption, HyperLock WORM, air-gap ransomware copies, DeviceManager, DME and eService for intelligent cloud operations.
OceanStor at a glance
| Storage families | Dorado all-flash; 5000 hybrid flash; Pacific distributed |
|---|---|
| Controllers (Dorado 5000) | 2 to 32, fully symmetric active-active |
| Controllers (OceanStor 5310) | 2 to 16, multi-controller active-active |
| Pacific 9546 capacity | 648-1,080 TB raw per 4U chassis (up to 1,440 TB) |
| Block protocols | FC, FC-NVMe, iSCSI, NVMe over RoCE/TCP |
| File & object protocols | NFS, CIFS/SMB, S3; Pacific also POSIX, MPI-IO, HDFS |
| RAID / data protection | RAID 5, 6, 10, RAID-TP; Pacific N+M erasure coding |
| Latency | As low as 0.05 ms |
| SSD media | Palm-sized NVMe SSDs, SAS SSDs, SCM; high-density 3.5-inch HDDs |
| Ransomware defense | Air-gap copies, secure snapshots, WORM, end-to-end encryption |
| Management | DeviceManager, UltraPath, DME, eService |
| Availability target | Up to 99.9999% (five-layer reliability) |
How to choose an OceanStor system
Choose Dorado 5000
Lowest latency for core databases. When sub-millisecond response, consistent IOPS and maximum controller scale matter most, an end-to-end NVMe all-flash array is the right answer.
Choose OceanStor 5310
Best balance of performance and cost. For mixed workloads where hot data needs flash but bulk data can live on high-capacity disks, hybrid flash delivers strong value.
Choose Pacific 9546
Massive unstructured data growth. When capacity is measured in petabytes and access is file, object or HDFS, distributed scale-out provides density and a single namespace.
Choose Dorado 5000 or 5310
Consolidation of block and file. Both unified arrays serve SAN and NAS from the same controllers, reducing the number of systems to manage.
Why source OceanStor through us
Configured to order
We size controllers, cache, drives and host connectivity precisely to your workload rather than shipping a fixed bundle.
Independent advice
As a multi-brand supplier we compare OceanStor against other platforms and recommend the solution that genuinely fits.
International export
We prepare export documentation and coordinate delivery to the Middle East, Southeast Asia, Africa and other markets.
Complete bill of materials
Arrays, expansion shelves, cables, transceivers, networking and support are specified in one clear quotation.
How we support OceanStor projects
We configure OceanStor systems to order, combining controller enclosures, disk shelves, host adapters and networking into a complete bill of materials matched to your capacity and performance targets. We also coordinate expansion, replacement and international delivery, with documentation for customs and deployment. As an independent supplier and exporter, we can compare OceanStor options with other platforms and recommend the right fit rather than pushing a single brand.
Frequently asked questions
What is Huawei OceanStor?
OceanStor is Huawei’s enterprise storage portfolio, covering Dorado all-flash arrays, hybrid flash systems, high-end SmartMatrix systems and Pacific distributed scale-out storage.
Which OceanStor families do you supply?
We configure and supply the Dorado 5000 all-flash array, the OceanStor 5310 hybrid flash system and the Pacific 9546 scale-out appliance, along with related expansion and networking options.
What is the difference between Dorado and the 5000 hybrid flash series?
Dorado is an end-to-end NVMe all-flash array for the lowest latency, while the hybrid flash 5000 series combines SSDs with high-capacity disks to balance performance and cost.
What is OceanStor Pacific used for?
Pacific is a distributed, scale-out platform for mass unstructured data such as HPC, big-data analytics, video repositories, backup and long-term archiving.
How much can a Dorado 5000 scale?
A single Dorado 5000 scales to 32 controllers, up to 8 TB dual-controller cache and up to 3,200 SSDs.
How much capacity does a Pacific 9546 chassis provide?
Each 4U chassis provides 648-1,080 TB raw, with maximum configurations reaching 1,440 TB.
Do OceanStor systems support active-active?
Yes. HyperMetro provides gateway-free active-active for SAN and NAS, with paths to 3DC and 4DC disaster recovery.
What protocols are supported?
FC, FC-NVMe, iSCSI, NVMe over RoCE/TCP, NFS, CIFS, S3 and, on Pacific, POSIX, MPI-IO and HDFS.
What is RAID-TP?
RAID-TP is triple-parity RAID that tolerates three simultaneous disk failures while keeping the system online.
How does OceanStor defend against ransomware?
Air-gap copies, secure snapshots, WORM retention and end-to-end encryption provide layered protection for production data.
Are warranties and support available?
Yes. Systems are supplied with configured hardware and support terms tailored to your deployment; ask us about the available warranty and response options.
Can you configure to order and export internationally?
Yes. We configure OceanStor systems to order and export across the Middle East, Southeast Asia, Africa and other global markets. Share your requirements for a detailed proposal.
Plan your OceanStor deployment
Send us your capacity, performance and protocol requirements. Our team will prepare a detailed OceanStor configuration and a competitive quotation for your market.
