xFusion FusionServer · 2U Rack

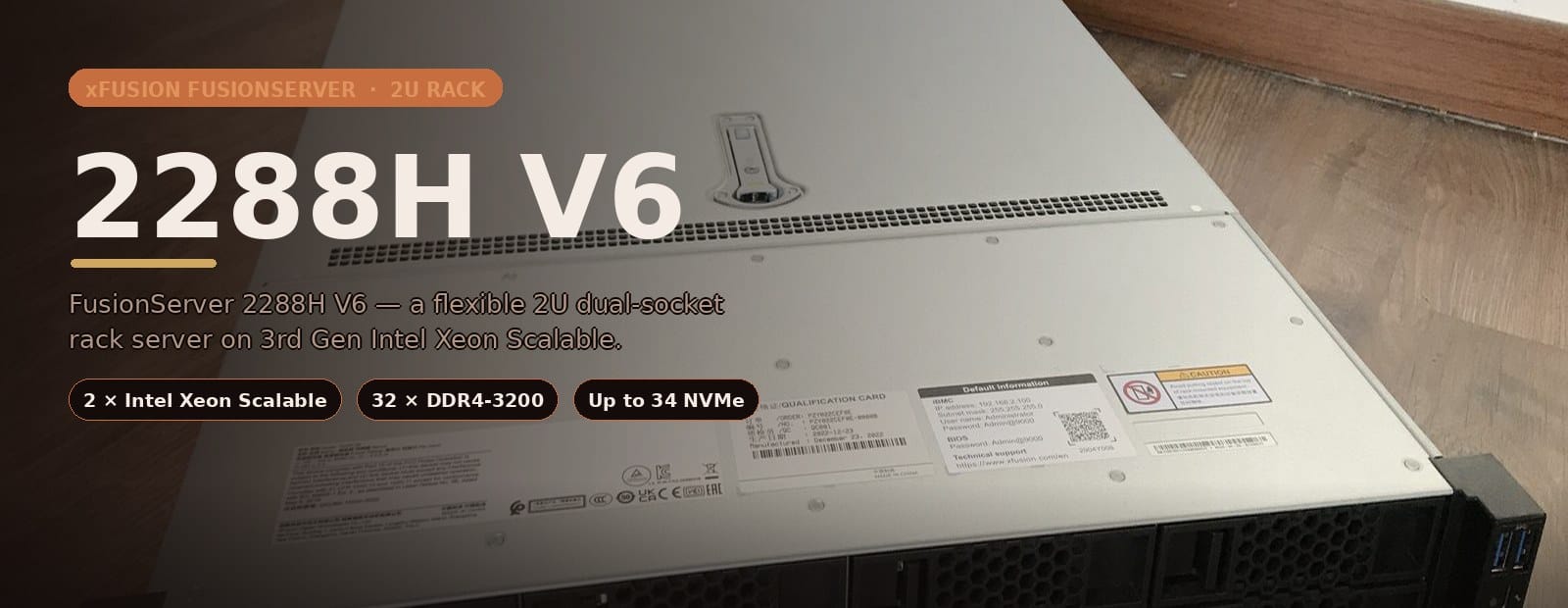

xFusion FusionServer 2288H V6 Server
The FusionServer 2288H V6 is a flexible 2U dual-socket rack server built on 3rd Generation Intel Xeon Scalable (Ice Lake) processors. With up to 32 DDR4 DIMMs, fourteen PCIe 4.0 slots and room for as many as 34 full-NVMe SSDs, it handles virtualization, databases, big-data and general cloud workloads with a proven, widely deployed platform.
Dual-socket compute
1 or 2 × 3rd Gen Intel Xeon Scalable, up to 270 W per socket and up to 80 cores.
Large memory
16/32 DDR4 DIMMs up to 3200 MT/s, with up to 16 Optane PMem 200 modules.
Dense storage
Up to 45 × 2.5″ drives or 34 full-NVMe SSDs, plus two hot-swap M.2.
GPU ready
Up to four 300 W FHFL dual-width accelerators for AI, VDI and inference.
Technical specifications
| Model / form factor | FusionServer 2288H V6 — 2U dual-socket rack server |
|---|---|
| Processors | 1 or 2 × 3rd Generation Intel Xeon Scalable (Ice Lake, 8300/6300/5300/4300 series), TDP up to 270 W; chipset Intel C621A |
| Memory | 16 or 32 × DDR4 DIMMs up to 3200 MT/s; up to 16 × Intel Optane PMem 200 series up to 3200 MT/s |
| Internal storage | 8–31 × 2.5″ SAS/SATA/SSD; 12–20 × 3.5″ SAS/SATA; 4/8/16/24 NVMe SSDs; maximum 45 × 2.5″ drives or 34 full-NVMe SSDs; 2 × M.2 SSDs |
| RAID | RAID 0, 1, 10, 5, 50, 6, 60 with optional supercapacitor protection; level migration and drive roaming |
| PCIe expansion | Up to 14 × PCIe 4.0 slots (1 RAID-dedicated, 2 FlexIO for OCP 3.0, 11 standard) |
| Network | OCP 3.0 adapters; two FlexIO slots supporting two OCP 3.0 NICs, hot-swappable |
| Accelerators | Up to 4 × 300 W FHFL dual-width GPUs, 8 × FHFL single-width, or 11 × HHHL single-width cards |
| Cooling | 4 hot-swappable counter-rotating fan modules in N+1 redundancy |
| Power supply | 2 × redundant hot-swap PSUs (1+1); 900 W Platinum/Titanium, 1500 W Platinum, 2000 W Platinum or 3000 W Titanium options, plus HVDC/DC variants |
| Management | Dedicated iBMC GE management port; Redfish, SNMP, IPMI 2.0; HTML5/VNC KVM; optional FusionDirector |
| Security | Power-on and administrator passwords, TPM 2.0, security panel, secure boot, cover-opening detection |
| Operating systems | Windows Server, SLES, VMware ESXi, RHEL, CentOS, Oracle Linux, Ubuntu, Debian, openEuler and more |
| Dimensions (H×W×D) | 86.1 × 447 × 790 mm (3.40 × 17.60 × 31.10 in) |
Performance at a glance
Figures are maximum platform capacities per the xFusion 2288H V6 datasheet; actual configurations are built to your workload and budget. Memory capacity reaches 8 TB with 32 × 256 GB DDR4 RDIMMs, or up to 12 TB when combining Optane PMem and DDR4.
Real hardware
Example configurations
General purpose
- 1 × Intel Xeon Silver 4314
- 64 GB DDR4 (4 × 16 GB)
- 4 × 2.5″ SAS/SATA
- 1 × 900 W PSU
- Dual GE + iBMC
Virtualization
- 2 × Intel Xeon Gold 6338
- 256 GB DDR4 (8 × 32 GB)
- 8 × 2.5″ SSD + 2 × M.2
- 2 × 900 W redundant PSUs
- OCP 3.0 NIC
Data & database
- 2 × Intel Xeon Gold 6348
- 512 GB DDR4
- 16–24 × NVMe SSD
- Hardware RAID/HBA + 2 × 1500 W PSUs
- OCP 3.0 25 GbE
These are starting points, not fixed bundles. Tell us your application and target budget and we will quote a tuned build.
How we prepare every server
Inspect
Full physical inspection of chassis, drives, fans, risers and power supplies.
Configure
CPUs, memory, drives and NICs assembled exactly to the agreed build sheet.
Update
BIOS, iBMC and component firmware brought to current stable releases.
Burn-in
Extended stress test covering CPU, memory, storage and thermal behavior.
Verify
RAID, network and out-of-band management checked before packing.
Pack
Secure, shock-protected packaging with rails and documentation.
Warranty: New 2288H V6 servers are covered by a 3-year warranty backed by our team, with responsive parts and remote technical support throughout.
Why xFusion
Enterprise roots
xFusion carries forward a long line of enterprise FusionServer platforms deployed at scale.
Flexible builds
Choose 16- or 32-DIMM chassis, multiple PSU classes and SAS, SATA or NVMe storage.
Efficient design
N+1 fans and up to Titanium PSUs help control power and cooling cost.
Global shipping
We export configured servers worldwide with careful B2B packaging and documentation.
| Capability | xFusion 2288H V6 | Comparable Dell 2U (PowerEdge R750 class) |
|---|---|---|
| Processor platform | 1/2 × 3rd Gen Intel Xeon Scalable (Ice Lake), up to 270 W | 1/2 × 3rd Gen Intel Xeon Scalable, similar TDP range |
| Memory | Up to 32 × DDR4-3200, plus Optane PMem 200 | Up to 32 × DDR4-3200, plus Optane PMem 200 |
| Maximum internal storage | Up to 45 × 2.5″ or 34 full-NVMe SSDs | Up to 24 × 2.5″ NVMe (typical 24-bay 2U) |
| PCIe / networking | Up to 14 × PCIe 4.0; dual OCP 3.0 via FlexIO | PCIe 4.0 slots plus OCP networking |
| Value position | Competitive pricing with dense storage and proven reliability | Strong platform, typically at a premium price |
A note on this comparison: the Dell column reflects typical published capabilities of the equivalent-generation 2U rack server and is shown to help position the 2288H V6, not as an exact one-to-one match. Verify any configuration against your application requirements.
Buy with confidence
Spec-based sourcing
Every configuration follows official xFusion specifications rather than copied spreadsheet claims.
Tested before dispatch
Each server passes firmware updates, burn-in and functional checks before it leaves us.
B2B export support
Clear communication, accurate paperwork and worldwide shipping for integrators and enterprises.
Get a quote for the 2288H V6
Send us your workload, required CPU/memory/storage and target budget. We usually respond within one business day with a configured, tested build.
Frequently asked questions
Is the xFusion 2288H V6 an Intel or an AMD server?
It is an Intel platform. The 2288H V6 uses one or two 3rd Generation Intel Xeon Scalable (Ice Lake) processors. For an AMD-based xFusion 2U, see the newer FusionServer 2258 V7 on AMD EPYC.
How does the 2288H V6 differ from the newer 2288H V7?
The 2288H V6 uses 3rd Generation Intel Xeon Scalable (Ice Lake) with DDR4 memory and PCIe 4.0. The newer 2288H V7 moves to later-generation processors, DDR5 memory and PCIe 5.0. The V6 remains a strong, cost-effective choice where the workload is well served by Ice Lake.
How many drives can the 2288H V6 hold?
Depending on the chassis, it supports 8–31 × 2.5″ SAS/SATA/SSD drives, 12–20 × 3.5″ drives, or 4/8/16/24 NVMe SSDs. At maximum it holds 45 × 2.5″ drives or 34 full-NVMe SSDs, plus two M.2 SSDs.
Can it support GPUs for AI or VDI?
Yes. The platform supports up to four 300 W full-height full-length dual-width GPU accelerators, eight FHFL single-width cards, or eleven half-height half-length single-width cards, subject to the riser and PSU configuration.
What is the maximum memory capacity?
With 32 DDR4 DIMMs it reaches 8 TB using 256 GB RDIMMs. Combining up to 16 Optane PMem 200 modules with DDR4 can extend total memory capacity to 12 TB.
Are the power supplies and fans redundant?
The server uses two hot-swap PSUs in a 1+1 redundant layout and four hot-swap counter-rotating fan modules in N+1 redundancy, so a single fan or PSU failure does not take the system down.
Which operating systems are supported?
Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler and others. We can install and update your preferred OS before dispatch.
What warranty and support are included?
New 2288H V6 servers include a 3-year warranty backed by our team, with parts support and remote technical assistance throughout the coverage period.
Do you ship internationally, and how fast will you quote?
Yes, we ship configured servers worldwide with B2B packaging and documentation. We typically respond to quote requests within one business day.
