● BRAND-NEW · FUSIONSERVER G6550 V8 · 3-YEAR WARRANTY

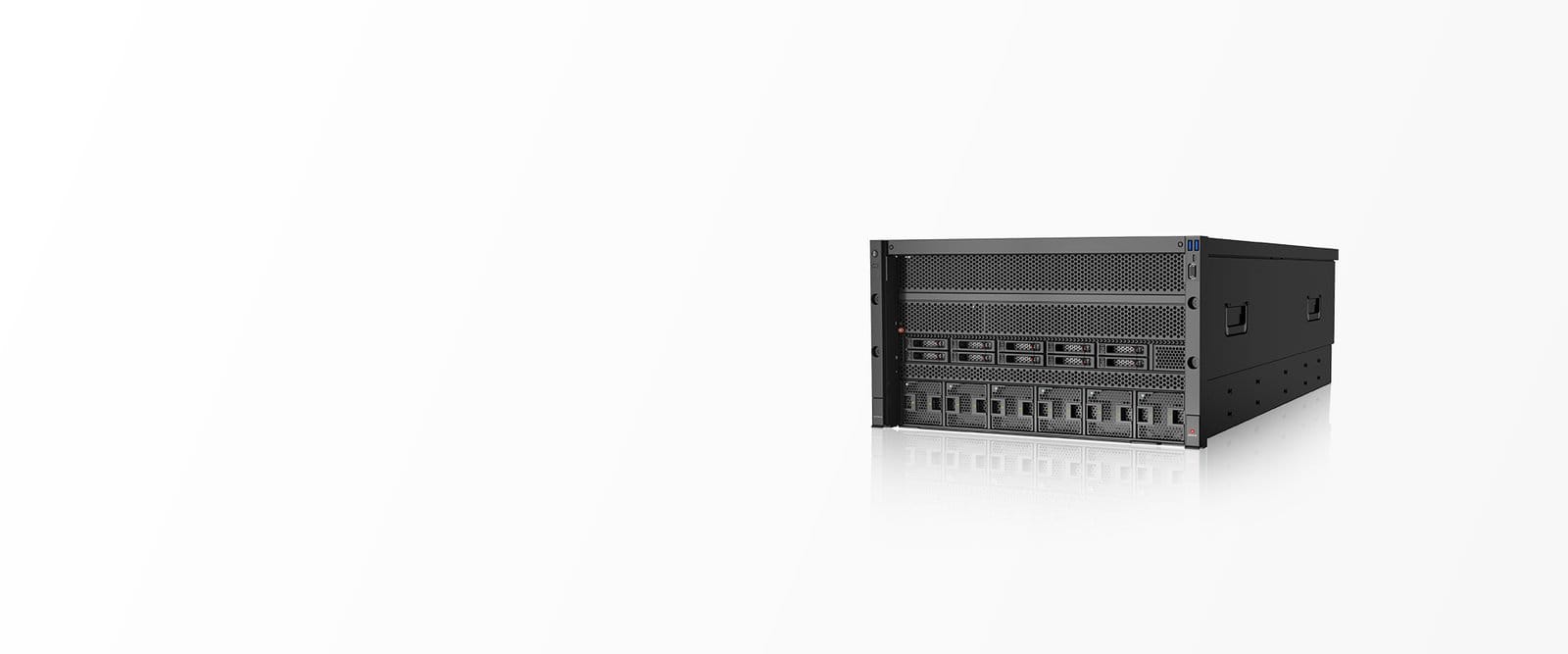

xFusion FusionServer G6550 V8 — 6U Modular AI Server, Dual EPYC Turin, 10 GPUs
A modular 6U chassis combining a computing module, a switch module and dual power-supply modules around two AMD EPYC 9005 (Turin) processors, 24 DDR5 DIMMs at up to 6400 MT/s and ten double-width data-center GPUs on a PCIe 5.0 switching fabric, fed by up to eight 3200 W Platinum/Titanium CRPS units. Built for AI training and inference, deep learning and scientific computing.
Why the G6550 V8
A modular, air-cooled 6U AI platform scaling to ten high-TDP accelerators with no liquid cooling.
Dual EPYC Turin
Two AMD EPYC 9005 Series (Turin) processors, each up to 500 W TDP, feed the accelerator wall.
Up to 10 GPUs
Ten double-width accelerators (or twenty single-width cards), multiple form factors, up to 600 W TDP per card.
Modular architecture
Reconfigurable, independently upgradable modules with blind-mate I/O cabling for clean service.
PCIe 5.0 fabric

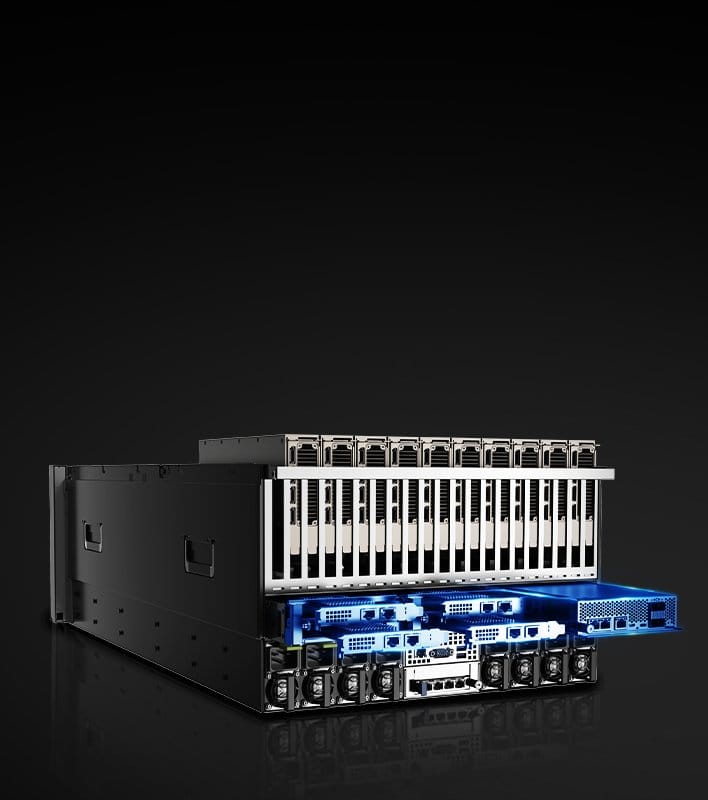

Pass-through or switch topology with up to 11 or 15 PCIe 5.0 slots, plus one OCP 3.0 network card.

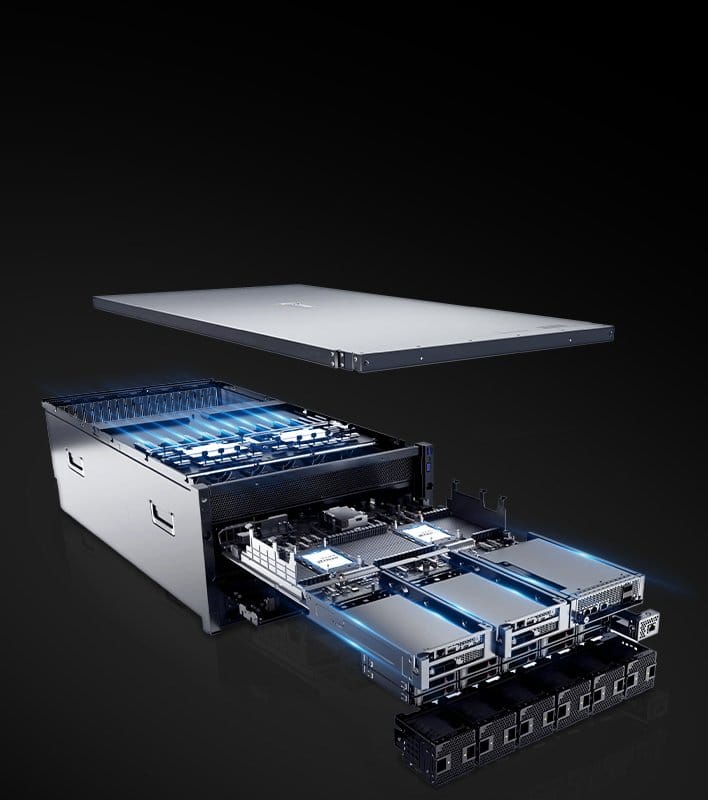

One 6U chassis, reconfigurable modules
xFusion builds the G6550 V8 around seven module types, reconfigurable and independently upgradable, with blind-mate I/O cabling for service without chassis opening. Front- or rear-maintenance variants suit different data centers.
The computing module carries the dual EPYC Turin processors, 24 DDR5 DIMMs and local storage; the switch module provides the PCIe 5.0 host-to-accelerator fabric; the two power-supply modules host up to eight 3200 W CRPS units in N+N/N+M redundancy. Loose coupling lets storage, networking or power evolve independently after deployment.
Simplified O&M: blind-mate cabling allows maintenance without rack ejection or chassis opening, in front- or rear-maintenance models.
G6550 V8 technical specifications
Official platform capabilities from the xFusion product page, datasheet and technical white paper. GPU models, memory capacity and drive layout are configured per project and confirmed before quoting.
| Specification | xFusion FusionServer G6550 V8 |
|---|---|
| Form factor | 6U modular AI computing server (air-cooled) |
| Processors | 2 × 5th-Generation AMD EPYC 9005 Series (Turin), up to 500 W TDP each |
| Memory | 24 × DDR5 DIMM slots, up to 6400 MT/s (maximum capacity not published by xFusion) |
| GPU accelerators | 10 × double-width GPUs (or 20 × single-width cards); multiple GPU form factors, up to 600 W TDP per card; configured per project |
| PCIe expansion | Pass-through model: up to 11 × standard PCIe 5.0 slots; switch model: up to 15 × standard PCIe 5.0 slots |
| Network | 1 × OCP 3.0 network card |

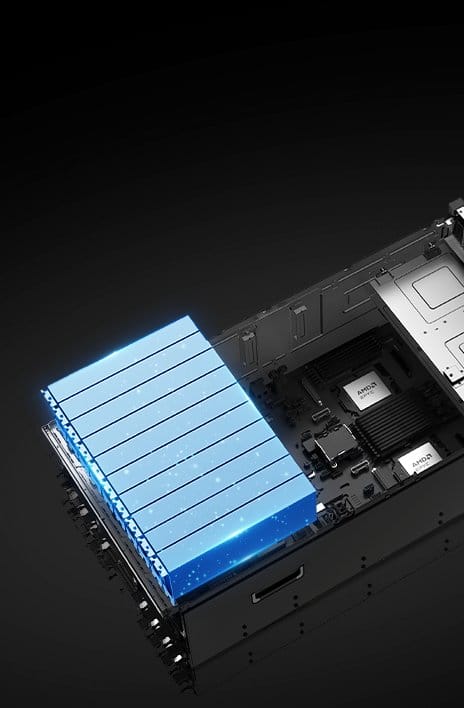

| Local storage | Up to 10 × 2.5" SAS/SATA/NVMe drives; 2 × M.2 SSDs supported |
| RAID | RAID 0, 1, 10, 5, 50, 6, 60; supercapacitor cache protection; RAID-level migration and drive roaming |
| Cooling | GPU zone: 12 or 18 × 6056++ fans in N+1 redundancy; CPU zone: 6 × 6056++ fans in N+1; optimized front-to-back airflow, stable to 35°C ambient |
| Power | 8 × 3200 W single-input or dual-input CRPS in N+N redundancy (up to eight PSUs in N+N/N+M); 80 PLUS Platinum/Titanium efficiency options |
| Management | iBMC management chip with dedicated GE port: Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM, Agentless; optional FusionDirector |
| Security | Power-on and administrator passwords, TPM 2.0, security bezel, secure boot, chassis intrusion detection |
| Operating temperature | 5°C to 35°C (41°F to 95°F), ASHRAE Class A1/A2 |
| Operating systems | Windows Server, SLES, VMware ESXi, RHEL, Oracle Linux, Ubuntu, openEuler |
| Certification | CE, UL, CCC, FCC, VCCI, RoHS |
| Dimensions (H×W×D) | 263.9 × 447 × 850 mm (10.39 × 17.60 × 33.46 in.); L-shaped, adjustable and holding rails |
| Warranty | Brand-new genuine xFusion server with a 3-year Xinchuan warranty; CTO/custom GPU configuration available |

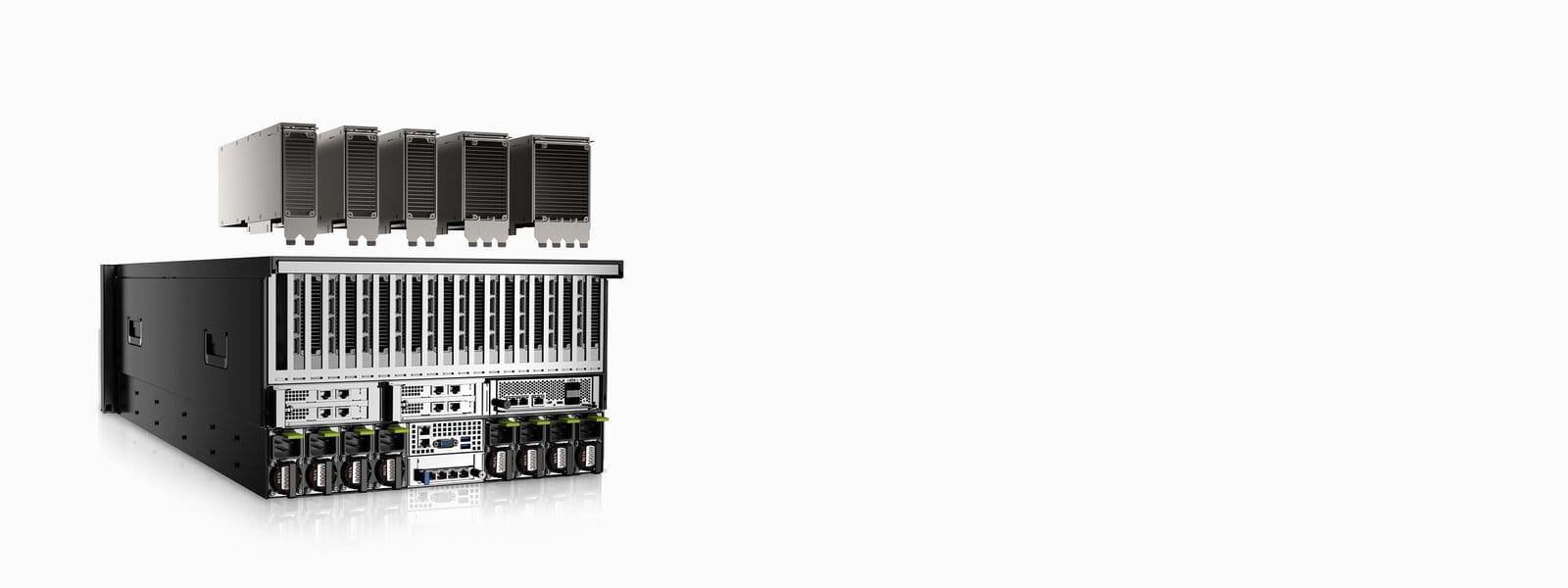

Ten accelerators on a PCIe 5.0 switching fabric
Two Turin processors and twenty-four DDR5 DIMMs keep a full wall of double-width GPUs fed, while pass-through and switch topologies let the node match the workload.

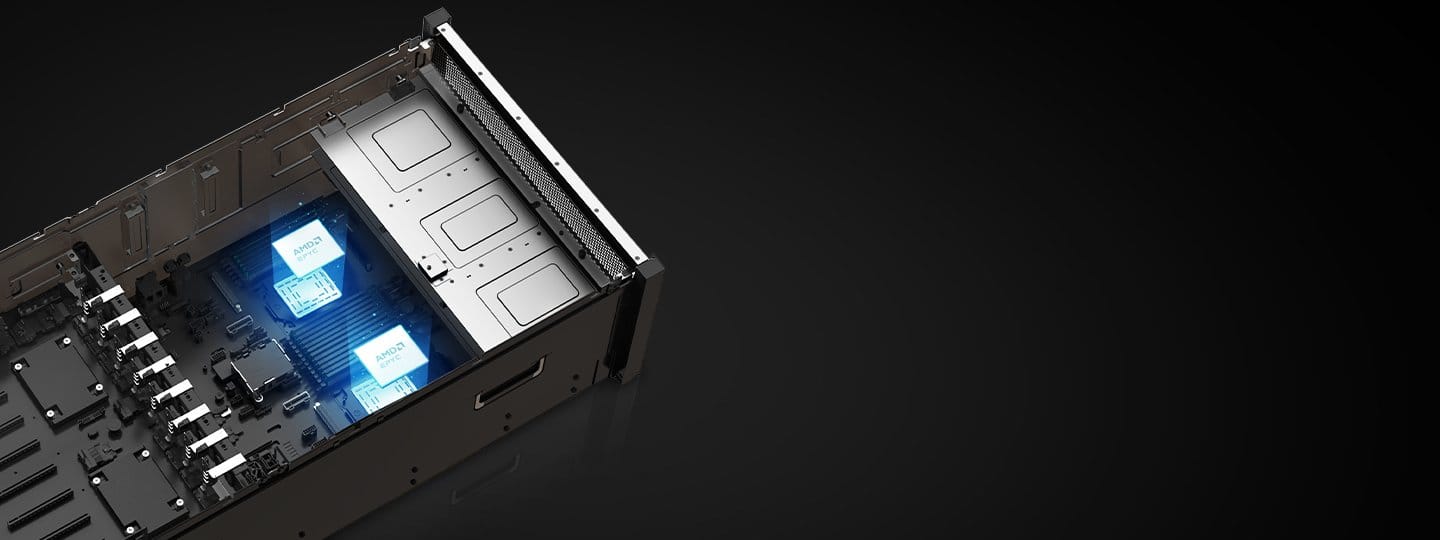

Each Turin processor is supported at up to 500 W TDP. xFusion lists 24 DDR5 DIMMs at up to 6400 MT/s without publishing a maximum capacity, so we size memory from the validated DIMM list per project rather than quoting an unverified terabyte figure.
The platform accepts multiple GPU form factors with up to 600 W TDP per card and supports both professional and consumer-grade PCIe GPUs; ten double-width slots (or twenty single-width) are exposed through pass-through or switch topology. Accelerator models, memory and combinations are configured per project — we verify card, riser, fabric and PSU compatibility against xFusion lists before quoting.

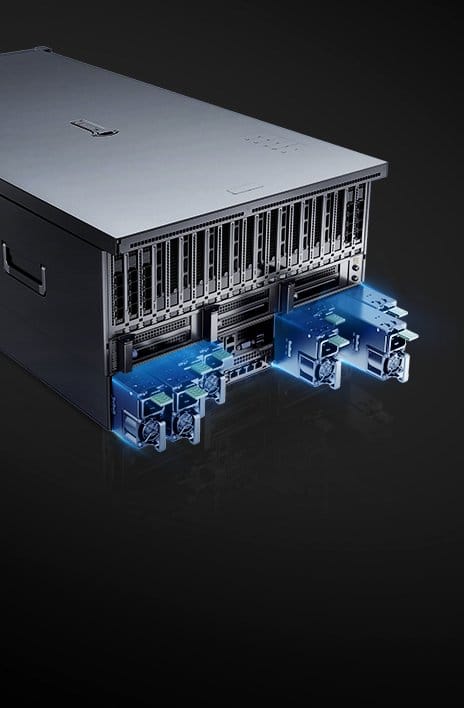

Eight 3200 W PSUs and zoned airflow for sustained GPU load
Dense 600 W-class accelerators need matching power and thermal design; the G6550 V8 uses a modular power shelf and separate GPU/CPU fan zones.
The power shelf holds eight 3200 W single-input or dual-input CRPS units in N+N redundancy (up to eight PSUs in N+N/N+M). xFusion’s white paper specifies 80 PLUS Platinum/Titanium supplies, reaching 96% efficiency at 50% load, plus active/standby and HVDC options.

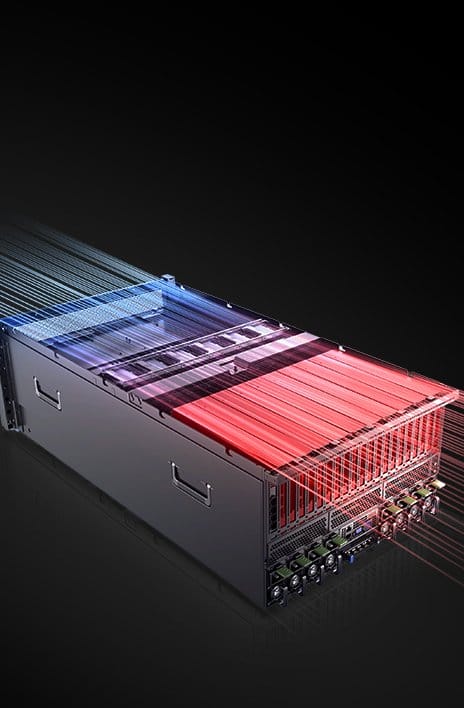

GPU: 12 or 18 × 6056++ fans; CPU: 6 × 6056++ fans, all N+1. Optimized front-to-back airflow supports stable operation at ambient up to 35°C (95°F), ASHRAE A1/A2.
What the G6550 V8 is built for
xFusion positions the platform across AI training and inference, intelligent computing and scientific workloads.
Large-model training
Ten double-width GPUs on a PCIe 5.0 fabric for single- and multi-node training of large language and vision models.
Inference & intelligent computing
xFusion calls it an AI inference flagship: dense serving, recommendation and intelligent-computing platforms on air cooling.
Deep learning
Deep-learning training, fine-tuning and video/image analysis pipelines leverage the 24 DIMMs and ten accelerator slots.
Scientific computing
HPC simulation and accelerated databases combine Turin host compute with GPU throughput and redundant 3200 W power.
Enterprise AI hardware, configured and warranted by us
xFusion — FusionServer
xFusion is the server brand spun out of Huawei’s server business; the G6550 V8 is its modular AI server, with iBMC management and optional FusionDirector lifecycle tooling.
Beijing Xinchuan Technology Co., Ltd.
Independent supplier and exporter of brand-new enterprise servers. Every G6550 V8 is configured to your GPU, EPYC SKU, memory, storage and networking needs, burn-in tested and backed by our 3-year warranty, with export documentation worldwide.
Brand-new G6550 V8, 3-year Xinchuan warranty
Only brand-new genuine xFusion units are supplied. Each ships with a CTO/custom GPU configuration tailored to the project and a documented test record.
Warranty on a new server
Every G6550 V8 ships as a brand-new genuine xFusion server covered by a 3-year Beijing Xinchuan warranty, burn-in tested before dispatch.
Custom GPU configuration
GPU model and count, EPYC 9005 SKUs, memory, drives and pass-through/switch topology are configured per project and validated before quoting.
Worldwide export shipping
Export packaging, rails and logistics arranged worldwide; multi-node batches aligned to one BIOS/BMC baseline.
xFusion FusionServer G6550 V8 questions
What is the FusionServer G6550 V8?
It is xFusion’s next-generation air-cooled 6U modular AI server, with two 5th-Generation AMD EPYC 9005 Series (Turin) processors, 24 DDR5 DIMMs at up to 6400 MT/s, a PCIe 5.0 switching fabric and up to ten double-width GPU accelerators. xFusion designs it for AI large-model training and inference, intelligent computing, deep learning and scientific computing.
Which GPUs does the G6550 V8 support?
The chassis holds ten double-width OAM/SXM-class data-center GPUs (or twenty single-width cards), supports multiple GPU form factors with up to 600 W TDP per card, and works with both professional and consumer-grade PCIe GPUs per xFusion’s white paper. We do not pin a card model: accelerators are configured per project, with card, riser, topology and 3200 W PSU compatibility validated before quoting.
What is the difference between the G6550 V8 and the G8550 V8?
Both are dual EPYC 9005 (Turin) V8 platforms. The G6550 V8 is the 6U modular node with ten double-width GPUs; the G8550 V8 is the larger 10U flagship scaling to sixteen double-width GPUs. Choose G6550 V8 for standard 8–10-GPU racks and G8550 V8 for maximum accelerator density.
Pass-through or switch topology — how do I choose?
Pass-through exposes up to eleven PCIe 5.0 slots with direct host paths suited to inference; the switch model exposes up to fifteen slots through the PCIe 5.0 fabric for more devices and flexible GPU grouping. We recommend the topology after reviewing your model and cluster plan.
What is the lead time and how is the server configured?
Every build is CTO — GPU models, EPYC SKUs, memory, storage, OCP networking and topology — so lead time depends on the selected accelerators and quantity. Send the workload and target BOM and we confirm build, lead time and price.
What warranty and condition apply, and do you ship worldwide?
We supply the G6550 V8 only as a brand-new genuine xFusion server with a 3-year Beijing Xinchuan warranty. Each order is burn-in tested and ships worldwide with export documentation. See our warranty page.
Configure your xFusion FusionServer G6550 V8
Send your GPU model/count, EPYC SKU, memory, storage and topology — or just describe the workload — and we return a validated build, lead time and price.
