2U Next-Generation Single-Socket Rack Server

xFusion FusionServer 2158H V8

Q: What drive configurations are available?

It supports 8 x 2.5-inch, 8 or 12 x 3.5-inch, a 24 x 2.5-inch bay (16 NVMe plus 8 SAS/SATA), plus 2 x M.2 SSDs, all with hardware RAID options.

AMD EPYC 9005 up to 192 cores · 12 DDR5 DIMM slots

Up to 4 dual-width GPUs · 10 PCIe 5.0 slots · 2 × OCP 3.0

2U / 1-socketup to 192-core EPYC12× DDR5-6400up to 4 GPUs

A next-generation 2U single-socket rack server built on the AMD EPYC 9004/9005 platform. With up to 192 cores in one processor, twelve DDR5 DIMM slots, ten PCIe 5.0 slots, two hot-swap OCP 3.0 NICs and room for up to four dual-width accelerators, the 2158H V8 gives you the performance of a dual-socket node with the simpler economics of a single CPU — ideal for virtualization, databases, big-data analytics, private cloud and GPU-accelerated inference.

💻

Virtualization & cloud

Up to 192 cores in one socket consolidate very large VM and container flees efficiently.

📊

Big data & databases

High core counts, large memory capacity and fast NVMe storage power analytics workloads.

🧠

AI inference & GPU

Up to four dual-width GPUs plus a DPU, all on PCIe 5.0 bandwidth.

⚙️

Single-socket value

Dual-socket-class performance with one CPU means lower licensing and simpler service.

Technical specifications

The figures below follow the official xFusion FusionServer 2158H V8 product specification. We configure every unit to your exact requirements.

Form factor	2U single-socket (2U1P) rack server
Processor	1 × AMD EPYC 9004 (Genoa) or EPYC 9005 (Turin), TDP up to 500 W; up to 192 cores per socket
Memory	12 DIMM slots; DDR5 up to 6400 MT/s
Local storage	Hot-swap 8 × 2.5″ or 8/12 × 3.5″ SAS/SATA/NVMe, 24 × 2.5″ (16 NVMe + 8 SAS/SATA), plus 2 × M.2 SSDs
RAID controller	RAID 0, 1, 10, 5, 50, 6, 60 with supercapacitor cache protection; RAID-level migration and drive roaming
Network	2 × hot-swappable OCP 3.0 NICs (PCIe 5.0)
PCIe expansion	10 PCIe slots, all PCIe 5.0
Accelerators	Up to 4 × dual-width GPU plus 1 × dual-width DPU, or up to 10 × single-width GPUs
Cooling	4 × 80 mm or 6 × 60 mm counter-rotating hot-swap fans in N+1 redundancy
Power supply	Redundant 1+1 PSUs: 900/1500/2000 W Platinum, 900/2000/3000 W Titanium, 1200 W -48V DC or 1500 W 380V HVDC
Management	iBMC with Redfish, SNMP, IPMI 2.0 and HTML5/VNC KVM, agentless; optional FusionDirector
Security	Power-on and administrator passwords, TPM 2.0, security panel, secure boot and cover-intrusion detection
Dimensions (H×W×D)	86.1 × 447 × 798 mm (3.39 × 17.60 × 31.42 in); operating temp 5 to 45 ℃, ASHRAE A1-A4

Performance at a glance

192

CPU cores possible from one socket

DDR5-6400 DIMM slots

dual-width GPUs supported

PCIe 5.0 slots for expansion

Indicative maximum values based on official xFusion specifications; actual configuration depends on processor, memory and accelerator selection.

Engineering views of the 2158H V8

The images below are official xFusion engineering renders that illustrate the platform architecture. Each server we deliver is then configured, tested and photographed in our own workshop before dispatch.

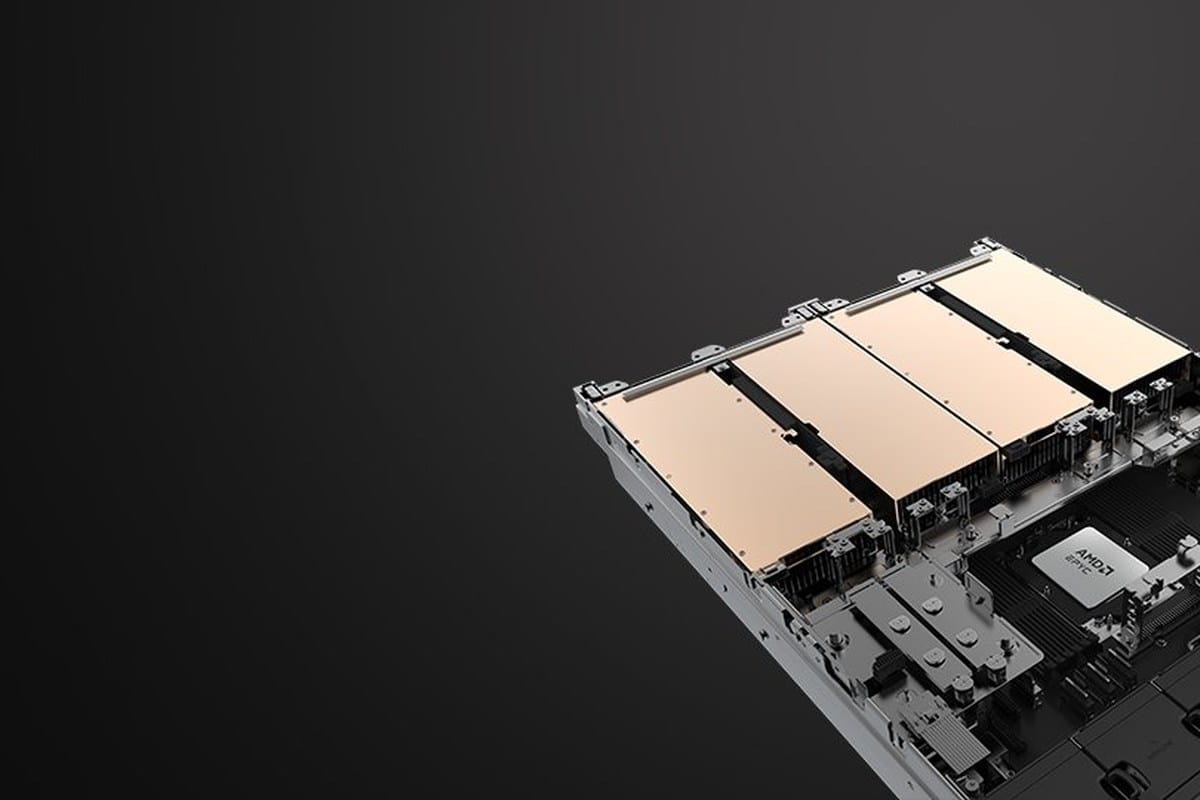

xFusion 2158H V8 open chassis with one AMD EPYC socket and DDR5 memory — Open chassis with the single AMD EPYC socket, DDR5 DIMM slots and rear PCIe area.

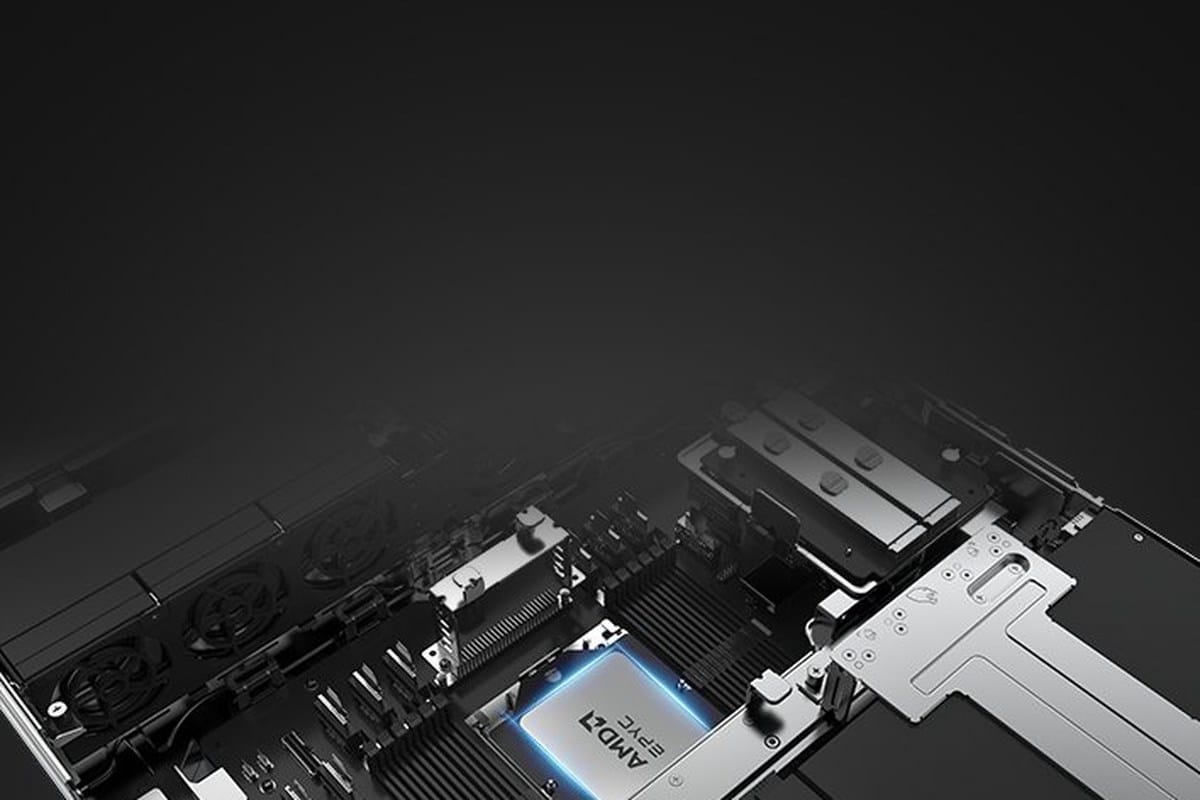

xFusion 2158H V8 close view of AMD EPYC processor and cooling — Close service view of the AMD EPYC processor, heatsink mounting and counter-rotating fans.

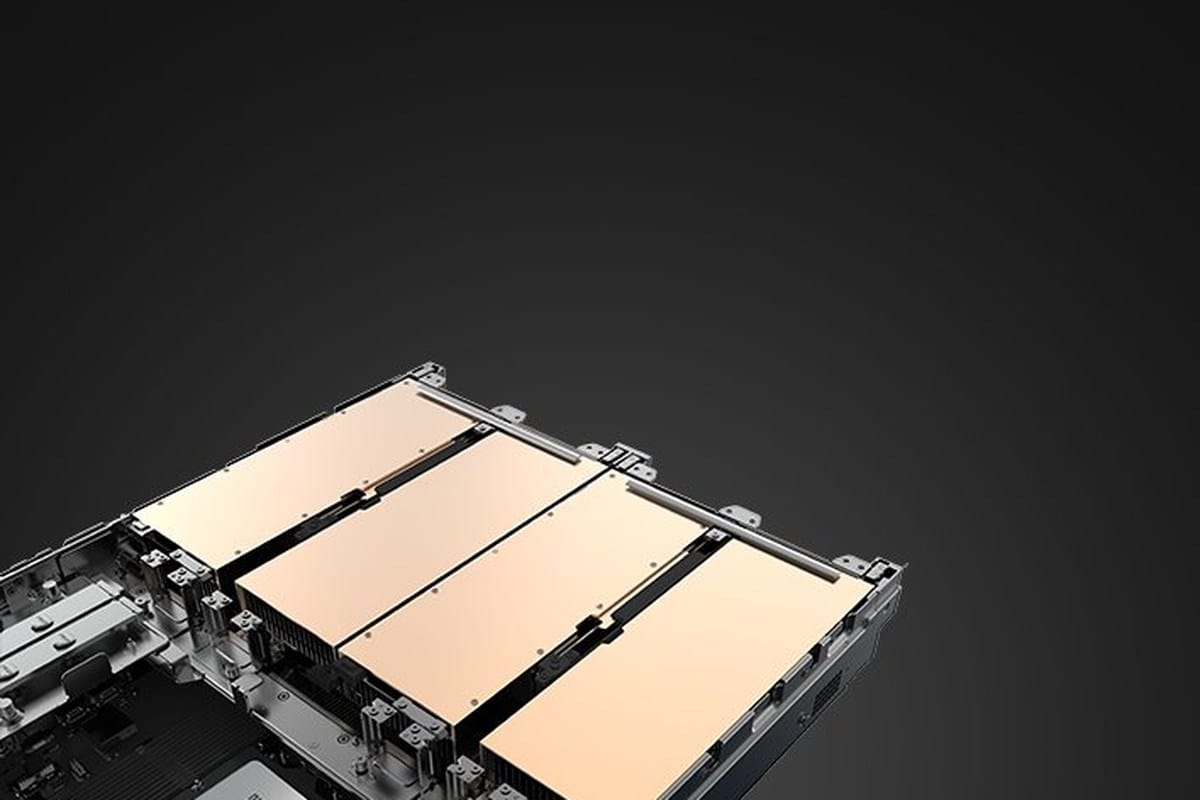

xFusion 2158H V8 compute and accelerator modules inside the chassis — Compute and accelerator module bays ready for GPU, DPU and high-speed I/O cards.

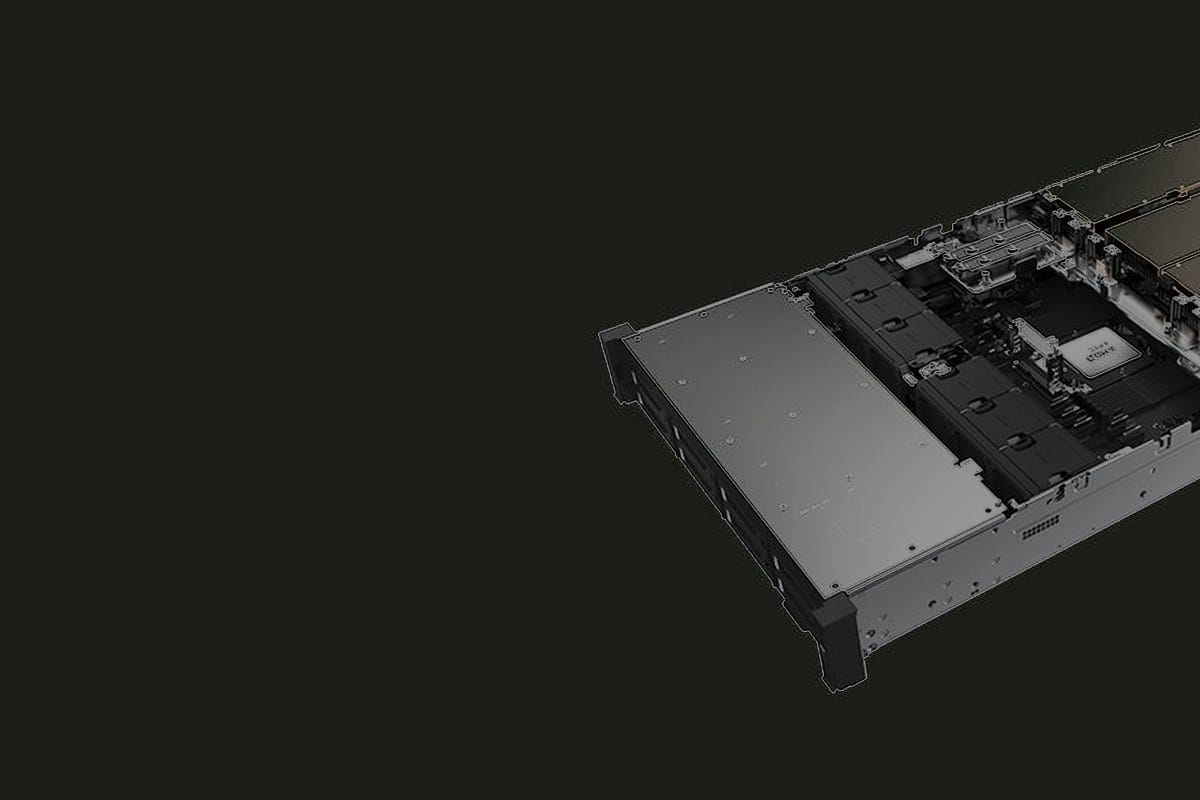

xFusion 2158H V8 top-down internal layout with tool-free lid removed — Top-down internal layout with the tool-free lid removed — airflow, EPYC socket and module bays.

Example configurations

Entry

General-purpose node

1 × EPYC 9004 (base core)
6 × 32 GB DDR5-4800
2 × 480 GB SATA SSD
OCP dual-port, 900 W PSU

Balanced

Virtualization host

1 × EPYC 9005 mid-range high-core
12 × 64 GB DDR5-6400
4 × 1.92 TB NVMe SSD
2 × OCP 25GbE, 1500 W PSU

High-end

GPU / dense node

1 × EPYC 9005 up to 192 cores / 500 W
12 × 64/128 GB DDR5
Up to 4 dual-width GPUs + DPU
100/200GbE fabric, 2000/3000 W PSU

How we prepare every server

Configuration check

We verify CPU, memory, drives and cards against your order and the official spec.

BIOS & firmware

Firmware is updated and BIOS settings (boot order, virtualization, SR-IOV) are applied.

Stress test

CPU, memory and accelerators are exercised to confirm stability under load.

Storage & RAID

RAID arrays are built and every drive is confirmed healthy with no errors.

Test & record

The unit is tested, labels verified, and photographed for your records.

Export packing

Secure packaging protects the server during international air or sea freight.

Warranty you can rely on: every new xFusion 2158H V8 we supply is covered by a 3-year warranty, with responsive support and spare-parts availability.

Why xFusion

Proven at scale

xFusion servers are deployed across carrier, cloud and enterprise data centers.

Energy efficient

Dynamic energy management and high-efficiency Platinum/Titanium PSUs cut OPEX.

Open standards

PCIe 5.0, OCP 3.0 and Redfish make third-party integration straightforward.

Intelligent O&M

iBMC and optional FusionDirector enable remote, automated lifecycle management.

	xFusion 2158H V8	Typical 2U dual-socket
Socket count	1 × AMD EPYC	2 × processors
Maximum cores	Up to 192 from one socket	Split across two CPUs
Memory	12 × DDR5-6400	More slots, two CPUs to fill
Accelerators	Up to 4 dual-width GPUs	Similar, higher power draw
Economics	One CPU to license and service	Higher software licensing cost

Honest note: the single-socket 2158H V8 often matches a dual-socket server while lowering your software licensing cost. If your workload needs two sockets, the established dual-socket xFusion 2288H V7 and the current-generation 1U 1288 V8 are our recommended alternatives. We will recommend the right platform rather than overselling any single one.

Buy with confidence

Global B2B shipping

We export to customers worldwide with full export documentation and flexible air or sea freight.

Tested before dispatch

Every unit is configured, stress-tested and photographed before it leaves our workshop.

Responsive support

Our technical team typically responds within one working day, before and after purchase.

Get a configured quote for the 2158H V8

Tell us your CPU, memory, storage, GPU and network requirements and we will respond with a tailored configuration and pricing, usually within one working day.

Request a quote
Browse all servers

Frequently asked questions

What is the 2158H V8?

It is xFusion’s next-generation 2U single-socket rack server, built on the AMD EPYC 9004/9005 platform and designed for virtualization, big data, databases, cloud and GPU inference.

Which processors does it support?

It accepts one AMD EPYC 9004 (Genoa) or EPYC 9005 (Turin) processor with a TDP up to 500 W and up to 192 cores.

Why choose a single-socket server?

A single high-core EPYC processor can deliver dual-socket-class performance while reducing software licensing, power and service complexity, making it very cost-effective for many workloads.

How much memory can it take?

It has twelve DDR5 DIMM slots supporting speeds up to 6400 MT/s.

What drive configurations are available?

It supports 8 × 2.5″, 8 or 12 × 3.5″, a 24 × 2.5″ bay (16 NVMe + 8 SAS/SATA), plus 2 × M.2 SSDs, all with hardware RAID options.

How many GPUs can it hold?

It supports up to four dual-width GPUs plus one dual-width DPU, or up to ten single-width GPUs, all connected over PCIe 5.0.

How many PCIe slots and what networking does it have?

It offers ten PCIe 5.0 slots and two hot-swappable OCP 3.0 NICs, so you can select the exact port count, speed and fabric you need.

How is it cooled and powered?

It uses counter-rotating hot-swap fans in N+1 redundancy and redundant 1+1 PSUs, with Platinum and Titanium options up to 3000 W.

Are the photos of the actual server?

The engineering images on this page are official xFusion renders illustrating the design. Every unit we deliver is then configured and tested in our workshop, and we share photos of your actual server before dispatch.
