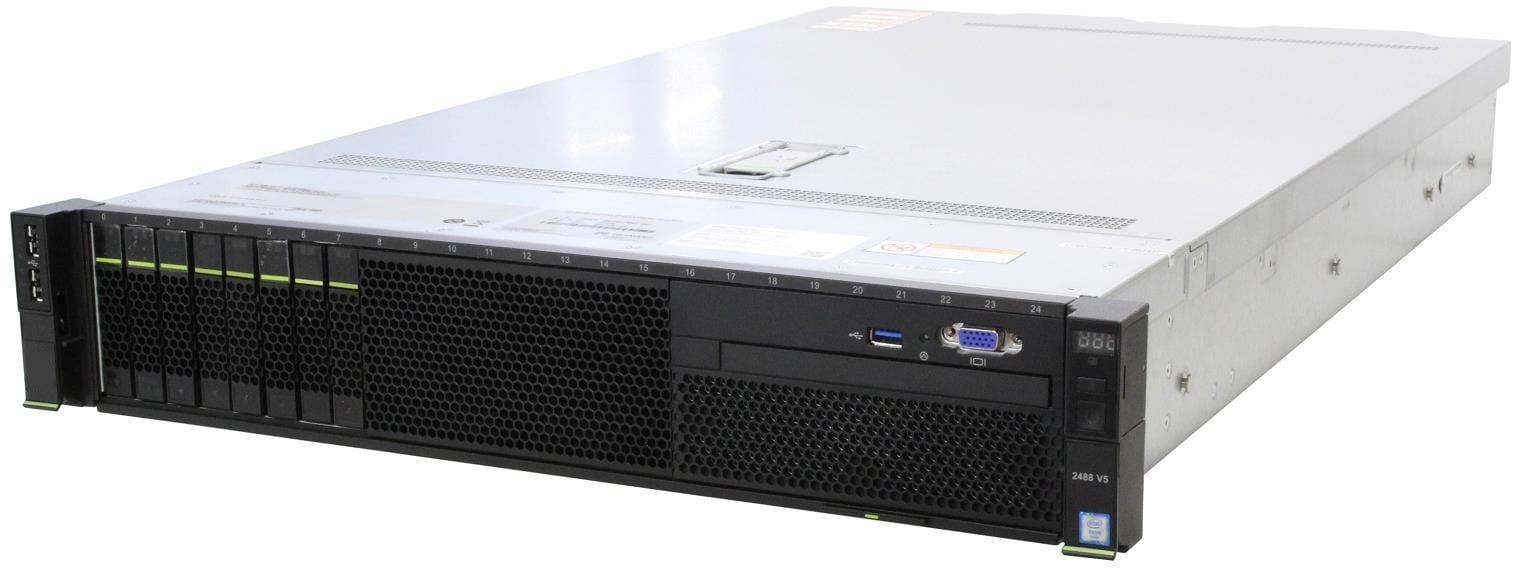

xFusion FusionServer 2488H V5 2U four-socket rack server, angled front view

Mission-Critical 2U Four-Socket Rack

xFusion FusionServer 2488H V5 Server

Name: xFusion FusionServer 2488H V5 Server
Brand: xFusion
SKU: FusionServer-2488H-V5
Availability: InStock

Four-socket compute density in a 2U chassis. The xFusion FusionServer 2488H V5 accepts two or four Intel Xeon Scalable processors, 48 DDR4 DIMMs up to 4 TB of memory and up to 11 PCIe 3.0 slots — engineered for high-density virtualization, SAP HANA in-memory platforms, HPC clusters and mission-critical databases. Every unit we offer is factory-sealed New Old Stock (NOS), exported worldwide and covered by a 3-year Xinchuan warranty.

Xeon Scalable CPU sockets inside a 2U chassis

4 TB

Maximum memory across 48 DDR4 DIMM slots

PCIe 3.0 expansion slots

205 W

Maximum TDP supported per processor

Built for four-socket workloads

The 2488H V5 puts four-socket throughput behind a compact 2U front panel, so demanding workloads get memory bandwidth, core count and I/O headroom without consuming extra rack space.

🖥️

High-density virtualization

Four sockets and up to 4 TB of DDR4 memory let one node host a large, consolidated virtual-machine estate with room to scale tenant density.

📊

SAP HANA & in-memory platforms

The 48-DIMM memory architecture is suited to large in-memory database footprints where capacity and bandwidth decide response times.

⚡

HPC & technical computing

Up to 11 PCIe 3.0 slots provide room for accelerators and high-speed fabrics in compute-dense clusters.

🛡️

Mission-critical databases

Redundant 1+1 power, hot-swap fans and supercapacitor-protected RAID keep OLTP and OLAP database services running.

Technical specifications

The figures below follow the official xFusion FusionServer 2488/2488H V5 specification; the 2488H V5 is the 2nd Generation Intel Xeon Scalable (Cascade Lake) variant. We configure each order to your exact requirements.

Form factor	2U four-socket (4S) rack server
Processors	2 or 4 × Intel Xeon Scalable processors (2nd Generation Intel Xeon Scalable support on the 2488H V5), TDP up to 205 W per CPU
Chipset	Intel C622
Memory	48 × DDR4 DIMM slots; up to 2933 MT/s at 1 DPC (2666 MT/s at 2 DPC); maximum capacity 4 TB (4096 GB) with 128 GB LRDIMMs
Internal storage	Hot-swap configurations: 8 × 2.5″ SAS/SATA; 24 × 2.5″ SAS/SATA; 25 × 2.5″ SAS/SATA; or 8 × 2.5″ NVMe + 16 × 2.5″ SAS/SATA; plus 2 × M.2 SSDs
RAID	RAID 0, 1, 10, 1E, 5, 50, 6, 60 with supercapacitor cache protection
Network (LOM)	2 × GE + 2 × 10GE
PCIe expansion	Up to 11 × PCIe 3.0 slots
Cooling	4 hot-swap counter-rotating fan modules
Power supply	2 hot-swap PSUs in 1+1 redundancy: 900 W AC Platinum, 1500 W AC Platinum, 2000 W AC Platinum or 1200 W DC
Management	iBMC with Redfish, SNMP, IPMI and HTML5 KVM; optional eSight / FusionDirector
Operating temperature	5–45 °C (ASHRAE A3/A4)
Dimensions (H×W×D)	86.1 × 447 × 748 mm

Flexible front-bay configurations

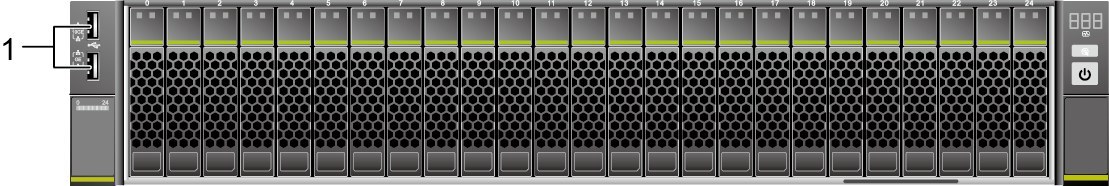

xFusion FusionServer 2488H V5 front panel with 25 x 2.5 inch hot-swap drive bays — The 25 × 2.5″ hot-swap front configuration of the 2488H V5.

Storage that matches the workload

Choose the backplane that fits your deployment — all-flash NVMe for latency-sensitive database logs, or broad SAS/SATA capacity for virtualization hosts:

8 × 2.5″ SAS/SATA — boot-oriented compute node
24 or 25 × 2.5″ SAS/SATA — general-purpose density
8 × 2.5″ NVMe + 16 × 2.5″ SAS/SATA — mixed all-flash tier
2 × M.2 SSDs for a dedicated boot volume

Where the 2488H V5 fits

Consolidated virtualization

Four-socket hosts for dense VMware and private-cloud consolidation projects.

In-memory databases

SAP HANA and other in-memory platforms that need multi-terabyte DRAM.

HPC nodes

Compute nodes with extensive PCIe 3.0 room for accelerators and fabric cards.

Core database services

Reliable OLTP/OLAP database hosts with redundant power and cooling.

Factory-sealed NOS, supplied and backed by Beijing Xinchuan

Beijing Xinchuan Technology Co., Ltd. is an independent supplier and exporter of xFusion solutions. The 2488H V5 units we offer are factory-sealed New Old Stock (NOS): new, never deployed, in original factory packaging. Each server is configured to order, inspected before dispatch and covered by a 3-year Xinchuan warranty, with export documentation and responsive technical support for international B2B buyers.

Independent supplier & exporter

We export complete xFusion server configurations worldwide with full B2B export paperwork and air or sea freight options.

Configured to your spec

CPU count, memory, drive backplane, RAID and NICs are built to your bill of materials and verified against the official specification.

3-year Xinchuan warranty

Every factory-sealed NOS unit carries a 3-year Xinchuan warranty with spare-parts support and a responsive technical team.

Platform note: the 2488H V5 belongs to the V5 generation and the 2nd Generation Intel Xeon Scalable family. If your project requires the newest xFusion architecture, compare the current xFusion FusionServer 2288H V7 or browse the full xFusion FusionServer range.

Frequently asked questions

What makes the 2488H V5 different from a standard 2U server?

It is a 2U four-socket rack server: it accepts two or four Intel Xeon Scalable processors with TDP up to 205 W, 48 DDR4 DIMM slots and up to 11 PCIe 3.0 slots, giving it substantially more compute and memory density than a typical dual-socket 2U machine.

Is the server you supply new or previously deployed?

Every 2488H V5 we offer is factory-sealed New Old Stock (NOS) — new, never deployed and in original factory packaging. It is sold by Beijing Xinchuan Technology Co., Ltd., an independent supplier and exporter, and is covered by a 3-year Xinchuan warranty.

How much memory can the 2488H V5 hold?

It provides 48 DDR4 DIMM slots running at up to 2933 MT/s at 1 DPC (2666 MT/s at 2 DPC), with a maximum capacity of 4 TB (4096 GB) using 128 GB LRDIMMs.

What drive configurations are available?

Hot-swap options are 8 × 2.5″ SAS/SATA, 24 × 2.5″ SAS/SATA, 25 × 2.5″ SAS/SATA, or 8 × 2.5″ NVMe combined with 16 × 2.5″ SAS/SATA, plus 2 × M.2 SSDs. RAID levels 0, 1, 10, 1E, 5, 50, 6 and 60 are supported with supercapacitor cache protection.

What expansion and onboard networking does it include?

The chassis offers up to 11 PCIe 3.0 slots for RAID, NIC, accelerator and fabric adapters, while the LOM provides 2 × GE plus 2 × 10GE network ports.

What are the power, cooling and environment specifications?

Two hot-swap PSUs run in 1+1 redundancy — 900 W, 1500 W or 2000 W AC Platinum, or 1200 W DC. Four hot-swap counter-rotating fan modules cool the system, which is rated for 5–45 °C operation (ASHRAE A3/A4).

How do I request a configuration and quote?

Send us your target CPU count, memory, storage, RAID and NIC requirements through the contact page. We reply with a tailored configuration and export quote, usually within one working day.

Request a quote for the 2488H V5

Tell us your four-socket configuration — processors, memory, drive backplane and network cards — and we will come back with pricing, lead time and export shipping options.
