Dell PowerEdge R660 (New)
What Is the Dell PowerEdge R660?
The R660 is the 1U dual-socket model of Dell’s 16th-generation PowerEdge family. It accepts two 4th Generation (Sapphire Rapids) or 5th Generation (Emerald Rapids) Intel Xeon Scalable processors, with 32 DDR5 DIMMs, PCIe Gen5 and E3.S front-storage options in a single rack-unit chassis.
It is the dense counterpart to the best-selling 2U R760: the same proven DDR5/Gen5 platform in a 1U form factor, chosen for VMware/Hyper-V and KVM hosts, web and container farms, all-flash 1U storage and high-density data centers where rack space is the constraint. We ship it new through our channel at export pricing.
R660 specifications at a glance
| Form factor | 1U dual-socket rack server (2 × CPU sockets) |
| Generation | Dell PowerEdge 16th Generation (16G) |
| Processors | 2 × 4th/5th Gen Intel Xeon Scalable (Sapphire Rapids / Emerald Rapids), Silver 4400 to Platinum 8592+; up to 385 W |
| Maximum cores | Up to 64 cores per socket (128 total) |
| Memory | 32 × DDR5 RDIMM slots, 4800 MT/s (4th Gen) / 5600 MT/s (5th Gen); CXL 1.1 memory expansion; 16/32/64/128/256 GB |
| Maximum memory | 8 TB |
| Front drives | 4 × 3.5″, 10 × 2.5″, or 10 × E3.S |
| Rear drives | — |
| Maximum NVMe | Up to 10 front NVMe drives |
| RAID / HBA | PERC 12: H355, H755/H755N, H965i; HBA465 passthrough; software RAID S160 |
| PCIe | 3 × PCIe Gen5 slots |
| Power | 800 W / 1400 W / 1800 W / 2400 W |
| Management | iDRAC9, OpenManage Enterprise, TPM 2.0, Silicon Root of Trust, Secure Boot |
Specifications per the official Dell PowerEdge spec sheet and our internal configuration database. New units are configured to order; not every option is present in every stock build, so confirm your target configuration with us.
R660 Specifications in Detail
Processors: dual 4th/5th Gen Xeon, up to 128 cores in 1U
The two sockets accept Sapphire Rapids (4th Gen) and Emerald Rapids (5th Gen) Intel Xeon Scalable CPUs, from Silver 4400-series to the Platinum 8592+, up to 64 cores per socket — 128 cores per host — at up to 385 W. Emerald Rapids brings 5600 MT/s DDR5. Send your vCPU and licensing targets and we will specify the exact SKU.
Memory: 32 DDR5 DIMMs, up to 8 TB with CXL 1.1
For a 1U platform the R660 offers a large memory footprint: 32 DDR5 RDIMM slots at 4800/5600 MT/s, 16–256 GB modules, an 8 TB ceiling and CXL 1.1 memory expansion. We match DIMM vendor, rank and speed to your fleet.
Storage: 10 × 2.5″ or 10 × E3.S, up to 10 NVMe
Front backplanes span 4 × 3.5″, 10 × 2.5″ SAS/SATA/NVMe, or the NVMe-optimized 10 × E3.S layout, with up to ten NVMe drives. Controllers span the PERC 12 H355/H755/H755N/H965i family plus HBA465; a BOSS-N1 dual-M.2 boot card is available.
PCIe Gen5, power and management
Three PCIe Gen5 riser slots and OCP 3.0 networking carry Gen5 NVMe and high-speed adapters in the 1U chassis. Redundant hot-plug PSUs range from 800 W to 2400 W. Management uses iDRAC9 and OpenManage Enterprise, with TPM 2.0, signed firmware and Silicon Root of Trust.
R660 vs R760 vs R670: Which Intel Server Do You Need?
| PowerEdge R660 (16G, 1U) | PowerEdge R760 (16G, 2U) | PowerEdge R670 (17G, 1U) | |
|---|---|---|---|
| Processors | 2 × 4th/5th Gen Xeon | 2 × 4th/5th Gen Xeon | 2 × Intel Xeon 6 Granite Rapids |
| Cores (max) | 128 total | 128 total | Up to 288 E-core total |
| Memory | 32 × DDR5-4800/5600, 8 TB | 32 × DDR5-4800/5600, 8 TB | 32 × DDR5-6400/MRDIMM, 8 TB |
| Front storage | 10 × 2.5″ / 10 × E3.S | Up to 24 × 2.5″ | Up to 40 × E3.S |
| Max NVMe | Up to 10 | Up to 24 | Up to 40 |
| PCIe / GPU | 3 × Gen5 | 8 × Gen5; 2 × 350W GPU | 5 × Gen5; low-profile |
| Best fit | Proven 1U DDR5 density | 2U expansion and GPUs | Newest 1U flagship, max cores/E3.S |
Rule of thumb: want proven 4th/5th Generation Xeon in the fewest rack units? Choose the R660. Need 2U expansion, 24 NVMe or double-width GPUs? Choose the R760. Want the newest Xeon 6 platform? Choose the R670.
Configure Your New R660: Batch Orders and Export
The R660 is one of our most-requested models for new fleet deployments — uniform hosts for VMware clusters, vSAN rows, databases and training/inference labs. Multi-unit orders receive identical CPU steppings, matched DIMM layouts, same-batch drives and standardized firmware, palletized for export. Send destination and incoterm with your inquiry.
Configurable options:
- 1 or 2 × 4th/5th Gen Intel Xeon Scalable processors (Silver / Gold / Platinum SKUs on request)
- 128 GB–8 TB DDR5-4800/5600 RDIMM, with CXL 1.1 memory expansion support
- 4 × 3.5″, 10 × 2.5″ or 10 × E3.S front; up to 10 NVMe
- PERC 12 H355 / H755 / H755N / H965i or HBA465; S160; BOSS-N1 M.2 boot
- OCP 3.0 10/25/100 GbE networking; 3 × PCIe Gen5 slots
- 800W / 1400W / 1800W / 2400W redundant hot-plug PSUs; rack rails and cable arms
Why Buy a New R660 from ServerBastion?
- Brand-new and factory-sealed. Current, genuine Dell systems supplied through our channel — no pull-from-unknown-origin or secondary-market stock on new orders.
- Channel pricing on configured builds. We configure and export in volume, so new systems are frequently quoted below Dell’s direct retail list — you receive a configured price, not a generic listing.
- 3-year manufacturer warranty. Every PowerEdge server we ship is new or factory-sealed NOS and carries a full 3-year warranty on every unit.
- Configured to your workload. Exact CPU SKU, DIMM map, controller, backplane, networking and PSU, with matched CPU steppings and DIMM layouts for fleet orders.
- Batch-ready and export-experienced. Matched revisions, palletized shipping and export documentation to 60+ countries.
Real R660 Units, Checked in Our Warehouse

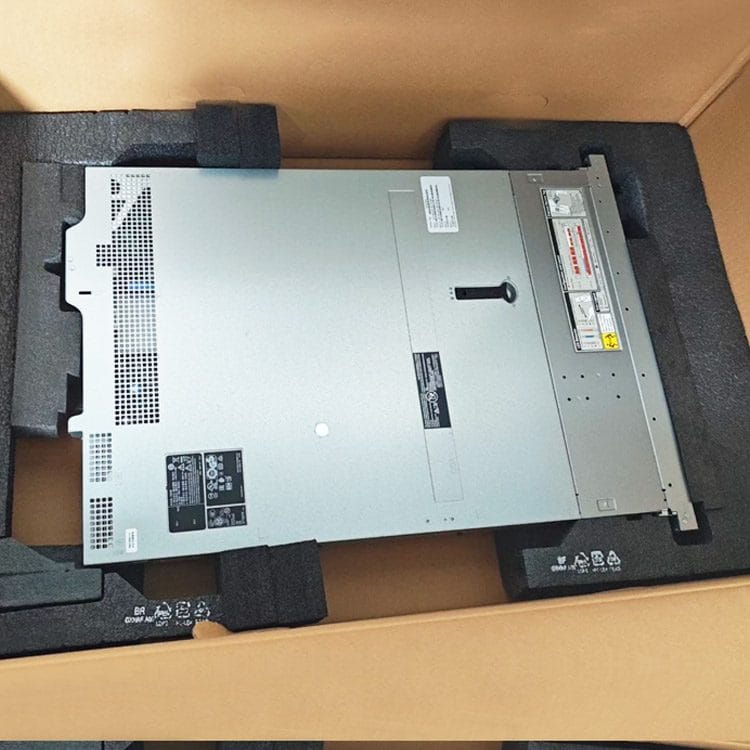

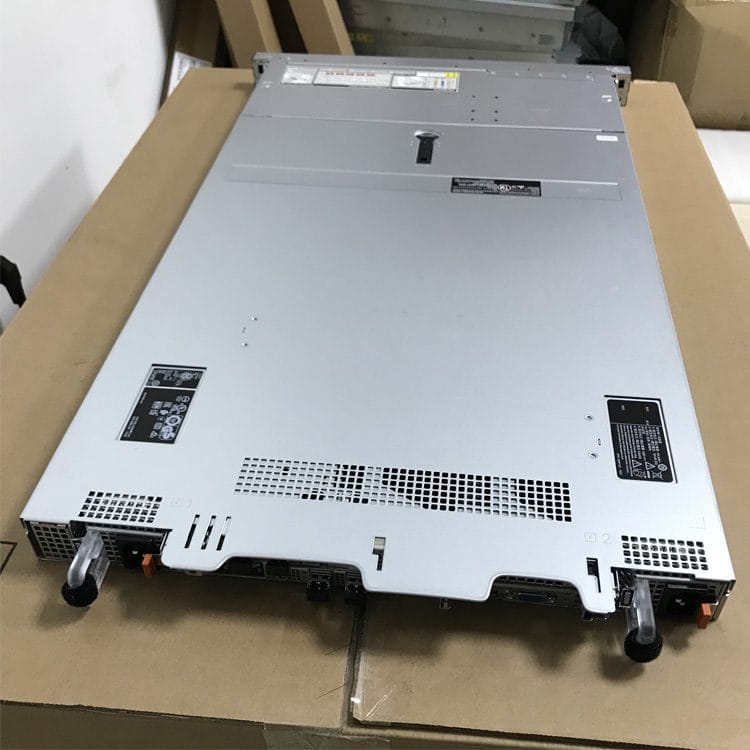

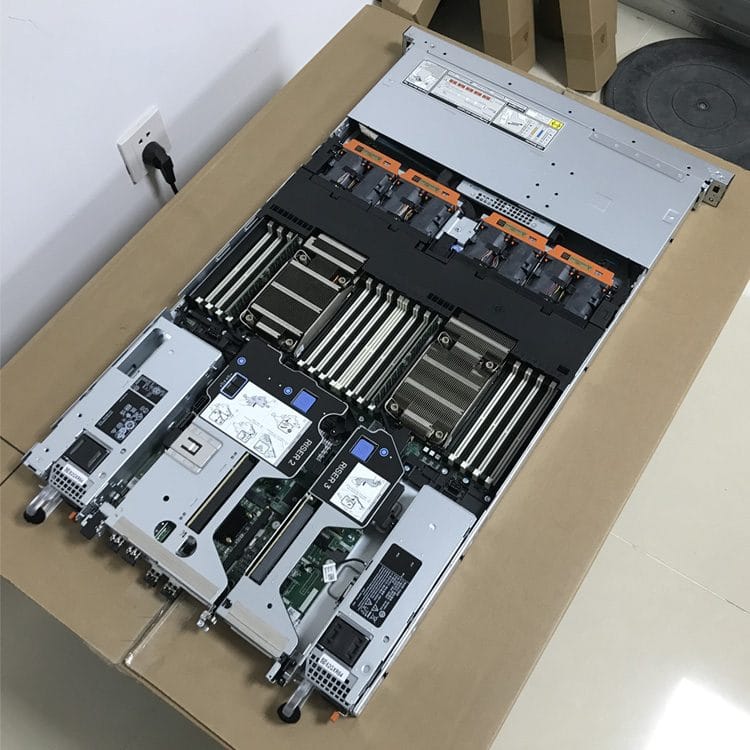

Actual photos of factory-sealed Dell PowerEdge R660 servers in our assembly and test area. Each unit is configured, inspected and burn-in checked before export packaging.
Frequently Asked Questions
What is the Dell PowerEdge R660 used for?
The R660 is Dell’s 16th-generation 1U dual-socket Intel server. It is used for dense VMware/Hyper-V and KVM virtualization, web and container farms, all-flash 1U storage and high-density data centers that need current DDR5 and PCIe Gen5 in a single rack unit.
What CPUs does the R660 use?
Two sockets accept 4th Generation Sapphire Rapids or 5th Generation Emerald Rapids Intel Xeon Scalable processors, from Silver 4400 to Platinum 8592+, up to 64 cores per socket (128 total) and 385 W per CPU.
What is the maximum RAM for the R660?
32 DDR5 RDIMM slots support up to 8 TB, at 4800 MT/s with 4th Gen or 5600 MT/s with 5th Gen Xeon, with CXL 1.1 memory expansion.
How many drives does the R660 support?
The 1U front bay supports 4 × 3.5″, 10 × 2.5″ or a 10 × E3.S NVMe layout, with up to 10 NVMe drives.
Is the R660 new or New Old Stock?
Our primary R660 offering is brand-new and factory-sealed at channel pricing, configured to order and covered by a 3-year manufacturer warranty.
What is the difference between the R660 and R760?
Both are 16th-generation 4th/5th Gen Xeon servers with up to 128 cores and 8 TB DDR5. The R660 is a 1U chassis (3 × Gen5 slots, up to 10 NVMe/E3.S) for density; the R760 is a 2U chassis (8 × Gen5 slots, up to 24 NVMe, up to 2 × 350W GPUs) for expansion.
