xFusion · 4U2P High-Density Storage

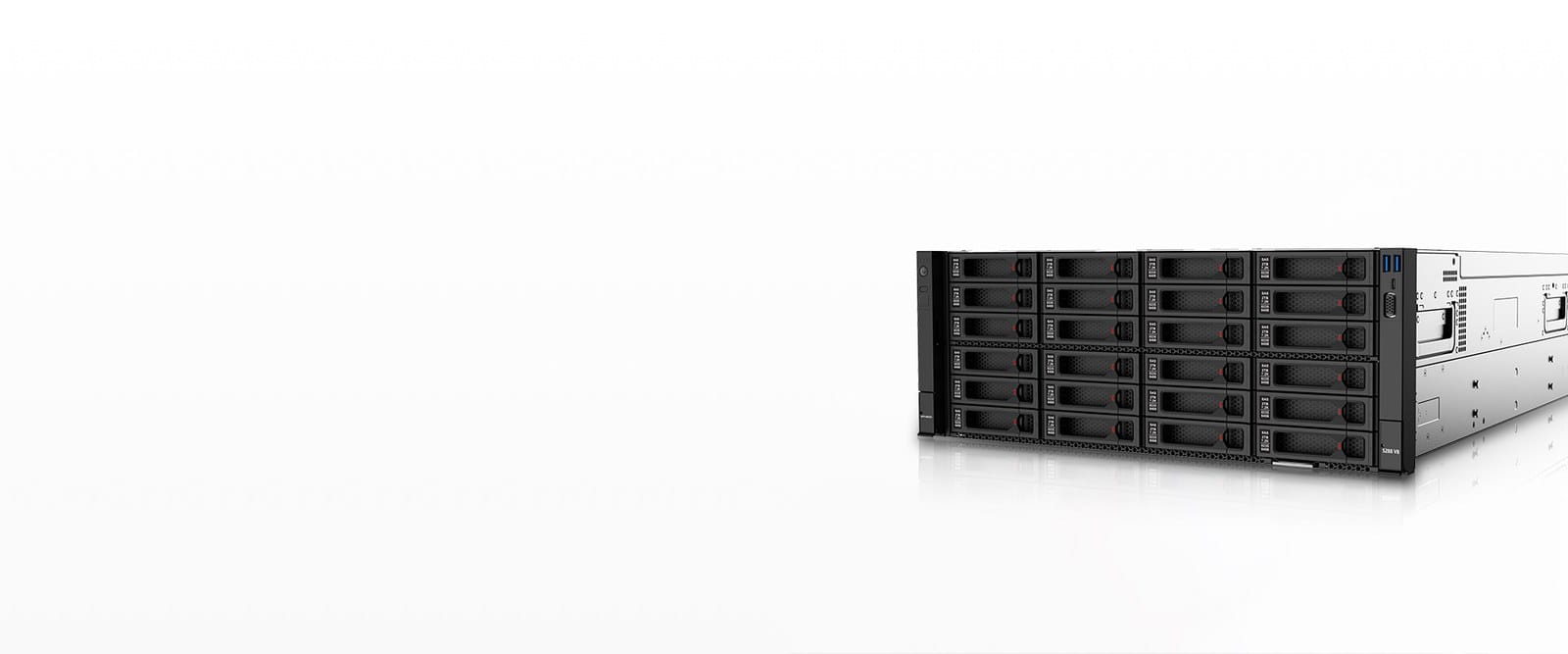

xFusion FusionServer 5288 V8 Rack Server
A next-generation 4U dual-socket storage server built for massive local capacity — up to 44 x 3.5" drives plus 4 x NVMe U.2 SSDs, powered by two Intel Xeon 6 processors with high-speed DDR5 / MRDIMM memory.
Overview
A storage-dense 4U platform for the data-heavy enterprise
The FusionServer 5288 V8 is a next-generation 4U2P rack server engineered to meet the demands of cloud computing, big-data analytics, distributed storage and warm–cold data storage. It packs a very large number of drives into a single 4U chassis while retaining the compute, memory and I/O headroom to run modern software-defined storage stacks.
With strong scalability, solid reliability and simplified management and deployment, the 5288 V8 is well suited to handling critical workloads in finance, education, Internet, telecom and security-protection industries. Two Intel Xeon 6 processors, 32 memory slots and up to 12 PCIe slots mean it is not “just a disk shelf” — it is a full server that can deduplicate, compress, encrypt and serve data locally.
We supply the 5288 V8 factory-sealed and brand-new, configured to your exact CPU, memory, drive, RAID and networking requirements, with a 3-year warranty and global export support.
Why it fits bulk storage
- Up to 44 x 3.5" drives for high-capacity HDD tiers
- 4 x NVMe U.2 SSDs for cache, journal or hot data
- 32 DIMMs support large RAM/metadata caches
- 2 x OCP 3.0 slots for fast, tidy networking
- Redundant power, cooling and remote iBMC management

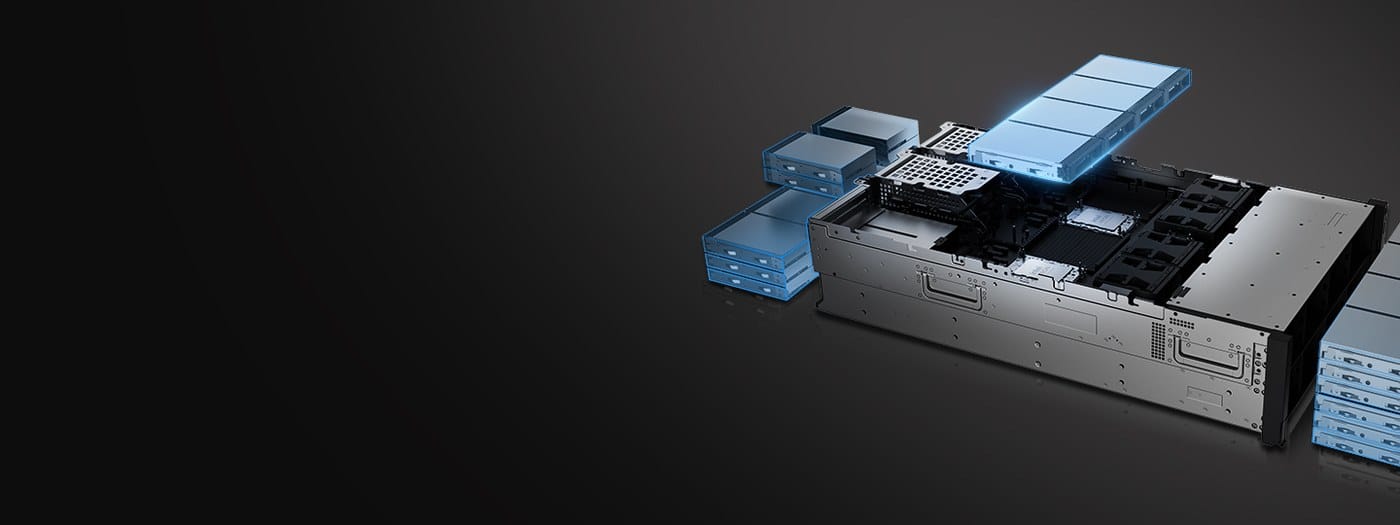

Massive Storage
44 x 3.5" drives plus 4 x NVMe U.2 SSDs
Mix high-capacity nearline SAS/SATA HDDs for the bulk tier with four U.2 NVMe SSDs used as read/write cache, metadata, journal or a small hot tier — a flexible layout for object storage, distributed file systems and archival repositories.
- Hot-swappable, front-loaded drives for easy service
- Hardware RAID with cache power-loss protection available
- Balanced drive layout with strong, even airflow
- Ideal for warm–cold tiers and historical-data archives

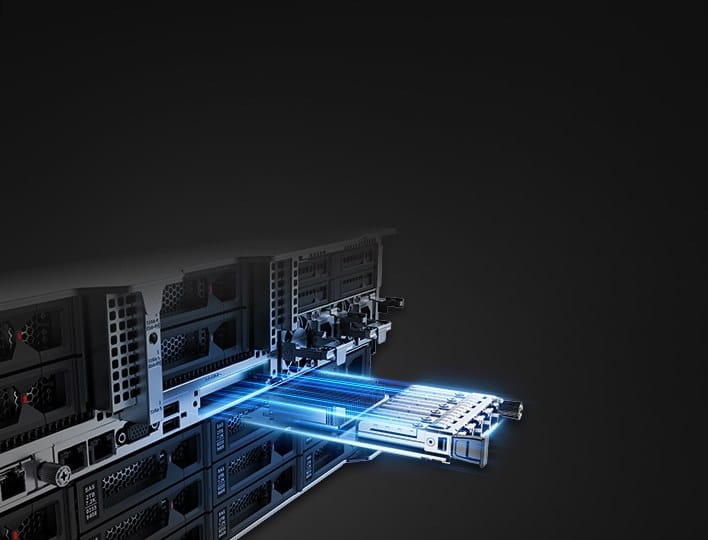

Flexible Expansion
12 PCIe slots, including 2 x OCP 3.0
Two OCP 3.0 slots let you add high-speed Ethernet or Fibre-Channel adapters without consuming standard riser slots, leaving room for SAS HBAs, RAID controllers and low-profile accelerators.
- Dedicated OCP 3.0 networking slots for clean cabling
- Standard slots for RAID/HBA and extra connectivity
- Redundant hot-swappable power and cooling
- Designed for easy deployment and maintenance
Performance
Xeon 6 compute with very fast memory
Two Intel Xeon 6 processors with up to 350 W TDP deliver the CPU throughput needed to run storage services, encryption and data pipelines, while 32 memory slots provide a large system cache.
Technical Specifications
FusionServer 5288 V8 specifications
Key verified specifications. Exact configurations depend on the CPU SKU, chassis backplane and options selected — tell us your requirements and we will confirm a precise build sheet.
Use Cases
Where the 5288 V8 fits
Cloud Computing
Dense storage-backed hosts for private and hybrid cloud and software-defined infrastructure.
Big-Data Analytics
Local capacity and Xeon 6 throughput for data lakes and analytics clusters.
Distributed Storage
Object, block and file storage nodes with OCP 3.0 high-speed networking.
Warm–Cold Archive
Cost-effective repositories and historical-data archiving on high-capacity HDDs.
Backup & Recovery
A central backup target with RAID and redundant power and cooling.
Media & Surveillance
Bulk storage for video archives, media libraries and recorded content.
Why Buy From Us
Brand-new xFusion, configured and supported end to end
Authorized-channel stock
Factory-sealed, brand-new servers — no used, refurbished or grey-market units.
Built to your spec
CPU, memory, drives, RAID and NICs selected together and tested before shipment.
3-year support
Warranty backed by Beijing Xinchuan Technology with responsive after-sales help.
Worldwide delivery
Global shipping with proper export documentation and responsive communication.
Example Builds
Starting points for your configuration
These are reference starting points, not fixed SKUs. Final pricing depends on the exact processor, drive and memory selection.
Cold-storage node
- 2 x Intel Xeon 6 (entry cores)
- 128 GB DDR5 memory
- 24 x 3.5" SATA HDDs
- Hardware RAID + 1 x OCP 3.0 NIC
Distributed storage node
- 2 x Intel Xeon 6 (mid-range)
- 256 GB DDR5 memory
- 36 x 3.5" SAS HDDs + 2 x NVMe
- 2 x OCP 3.0 high-speed NICs
Maximum-capacity node
- 2 x Intel Xeon 6 (high-core, 350 W)
- 512 GB DDR5 / MRDIMM memory
- 44 x 3.5" HDDs + 4 x NVMe U.2
- Dual OCP 3.0 + extra HBA/RAID
FAQ
FusionServer 5288 V8 — common questions
What is the xFusion FusionServer 5288 V8?
It is a next-generation 4U dual-socket (4U2P) rack server designed for storage-heavy workloads. It supports up to 44 x 3.5" drives plus 4 x NVMe U.2 SSDs, two Intel Xeon 6 processors and 32 DDR5/MRDIMM memory slots.
How many drives can the 5288 V8 hold?
Up to 44 x 3.5" drives together with 4 x NVMe U.2 SSDs, depending on the backplane/chassis configuration. Drives are hot-swappable and front-loaded for easy servicing.
Which processors and memory does it use?
It uses two Intel Xeon 6 processors with TDP up to 350 W each, and offers 32 memory slots — DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s.
Is this a new server with a warranty?
Yes. We supply only factory-sealed, brand-new units through genuine xFusion channels, with a 3-year warranty backed by Beijing Xinchuan Technology. We do not sell used or refurbished units as new.
Can you configure RAID and networking to my needs?
Yes. We can configure hardware RAID (0/1/1E/5/50/6/60) with cache power-loss protection, and add OCP 3.0 and standard PCIe NICs/HBAs. Every build is assembled and tested before shipment.
How do I get a price and buy internationally?
Pricing is quote-based because each server is configured to order. Use Request a Quote or message us on WhatsApp with your requirements; we respond quickly and can arrange worldwide export with proper documentation.
Configure your xFusion 5288 V8 storage server
Send us your drive count, capacity, CPU, memory and networking requirements. We will reply with a precise build sheet, pricing and lead time — usually within one business day.
