xFusion FusionServer 5288 V6 4U storage server, real factory-sealed unit front view

Home / Servers / Storage Servers / 5288 V6

4U Storage · New Old Stock

xFusion FusionServer 5288 V6 Storage Server

Name: xFusion FusionServer 5288 V6
Brand: xFusion
Availability: InStock

A 4U dual-socket storage server powered by 3rd-Gen Intel Xeon Scalable (Ice Lake), holding up to 44 large drives plus NVMe — factory-sealed NOS, 3-year warranty.

44 + 43.5" drives / NVMe

2 ×Xeon Scalable to 270W

32DDR4 DIMMs

11PCIe 4.0 slots

Request a Quote
Specifications

FusionServer 5288 V6 identification badge on front ear

Maximum capacity on the mature Ice Lake platform

The FusionServer 5288 V6 fits up to 44 hot-swappable 3.5-inch drives and 4 NVMe SSDs in 4U, designed for tiered hot/warm/cold data deployment and historical-data archiving at the lowest cost per terabyte.

Built on 3rd-Gen Intel Xeon Scalable processors with up to 32 DDR4 DIMMs (and optional Optane persistent memory), it delivers the dependable, proven economics that bulk-archive buyers look for.

Ultra-large storage

Up to 44 × 3.5" drives plus 4 NVMe in a single 4U chassis.

Strong compute

Dual Ice Lake Xeon processors, up to 40 cores and 270W TDP.

Flexible memory

32 DDR4 slots and up to 16 Optane PMem 200 modules.

Efficient design

DEMT dynamic energy management and redundant cooling and power.

Value of a mature platform

Why a proven Ice Lake storage node still makes sense

Lowest cost per terabyte

Storage workloads are bounded by drive capacity far more than by the newest CPU. The mature platform removes the premium of the latest generation while delivering the same 44-bay density, so budget goes into drives rather than features a bulk-archive node will not use.

Proven and well understood

3rd-Gen Xeon is a long-shipping, thoroughly validated platform. BIOS, firmware and management are stable, and most engineering teams already know how to deploy and troubleshoot it — reducing risk in large storage builds.

Fits an existing DDR4 fleet

If your environment already runs 3rd-Gen Xeon and DDR4, adding the 5288 V6 keeps spares, memory and operational knowledge consistent. There is no need to introduce a new platform just to add capacity.

Still a capable two-socket server

Up to two processors, 32 DIMMs, ten PCIe slots and optional Optane give real compute and I/O headroom. This is a storage node that can also run local analytics, transcoding or storage services — not a dumb disk enclosure.

When to step up a generation instead: choose the V7 or V8 if you need DDR5, PCIe 5.0, higher memory bandwidth or the longest possible platform lifecycle for a brand-new cluster. For pure warm/cold capacity, the V6 is the value choice.

Technical specifications

System

Model

xFusion FusionServer 5288 V6

Form factor

4U dual-socket rack server

Processors

1/2 × 3rd-Gen Intel Xeon Scalable (Ice Lake 8300/6300/5300/4300), up to 270W

Chipset

Intel C621A

Memory

32 × DDR4 up to 3200 MT/s; up to 16 × Optane PMem 200

Storage & I/O

Local storage

36–44 × 3.5" SAS/SATA + 4 NVMe; 24 × 3.5" and other layouts; 2 × M.2

RAID

RAID 0, 1, 5, 50, 6, 60 with supercapacitor protection

PCIe

Up to 11 × PCIe 4.0 (1 RAID + 2 FlexIO + 8 standard)

Networking

2 × OCP 3.0 FlexIO slots; LOM, configured to order

Accelerators

2 × FHFL dual-slot or 4 × HHHL single-slot cards

Cooling & power

Cooling

4 hot-swappable fans, N+1 redundancy

Power supply

1+1 redundant hot-swap Platinum/Titanium PSUs: 900W / 1500W / 2000W

Management

iBMC (Redfish, SNMP, IPMI 2.0, HTML5 KVM); FusionDirector

Physical

Dimensions

175 × 447 × 790 mm (H×W×D)

Condition

Factory-sealed new old stock (NOS)

Warranty

3-year warranty backed by Beijing Xinchuan Technology

In the warehouse

Real photos of the FusionServer 5288 V6

These are photographs of an actual FusionServer 5288 V6 from our stock — not renders. Every unit is inspected before dispatch and ships with its original factory identification label.

Real FusionServer 5288 V6 front, 44 bays, full drive backplane

Front view — 4U, 44 x 3.5" baysThe genuine unit with its full drive backplane, front I/O panel and ear identification.

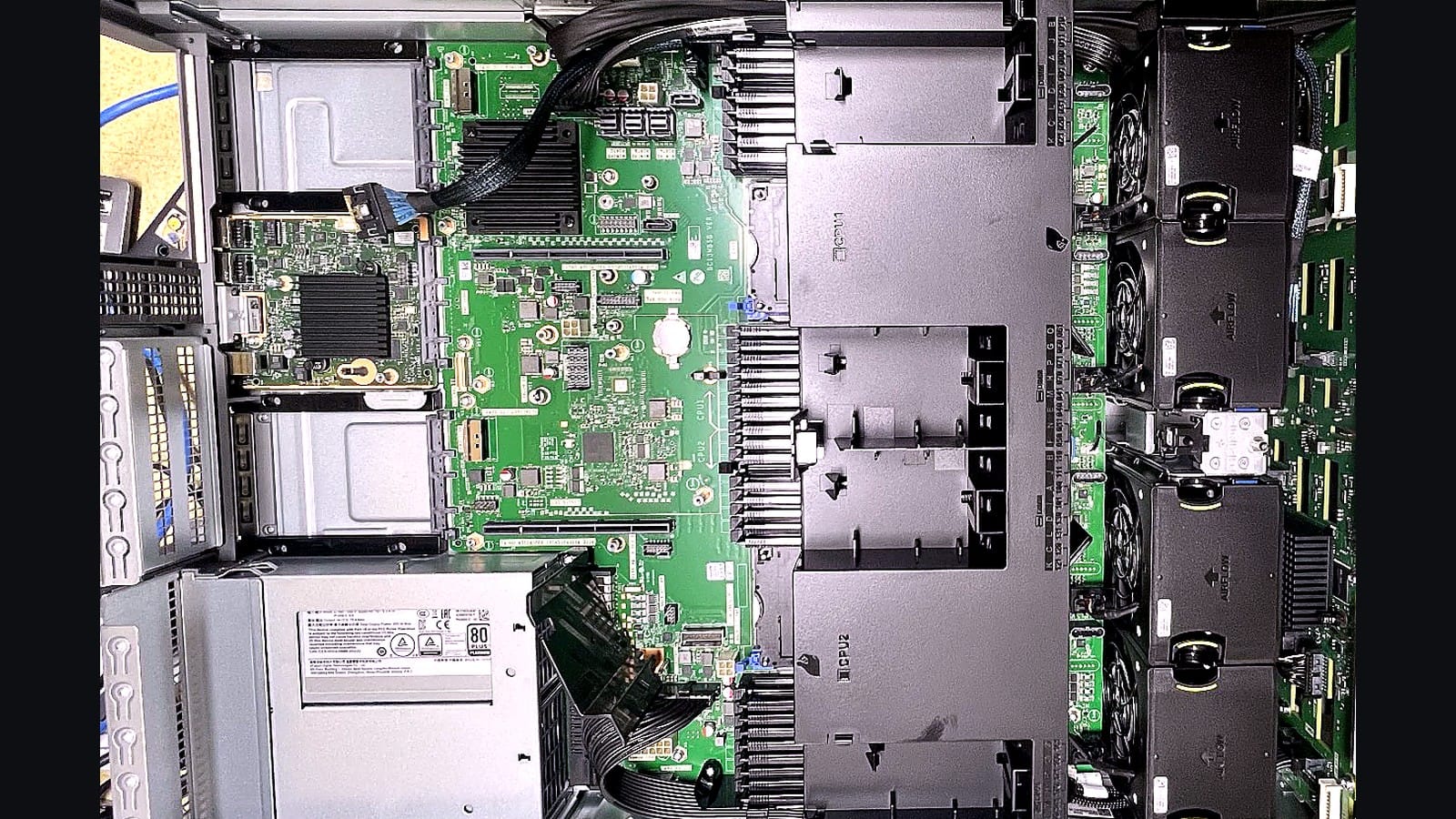

FusionServer 5288 V6 internal layout, fans, mainboard and power supply

Internal layoutHot-plug fan modules, mainboard with DIMM and CPU slots, PCIe risers and redundant power supply.

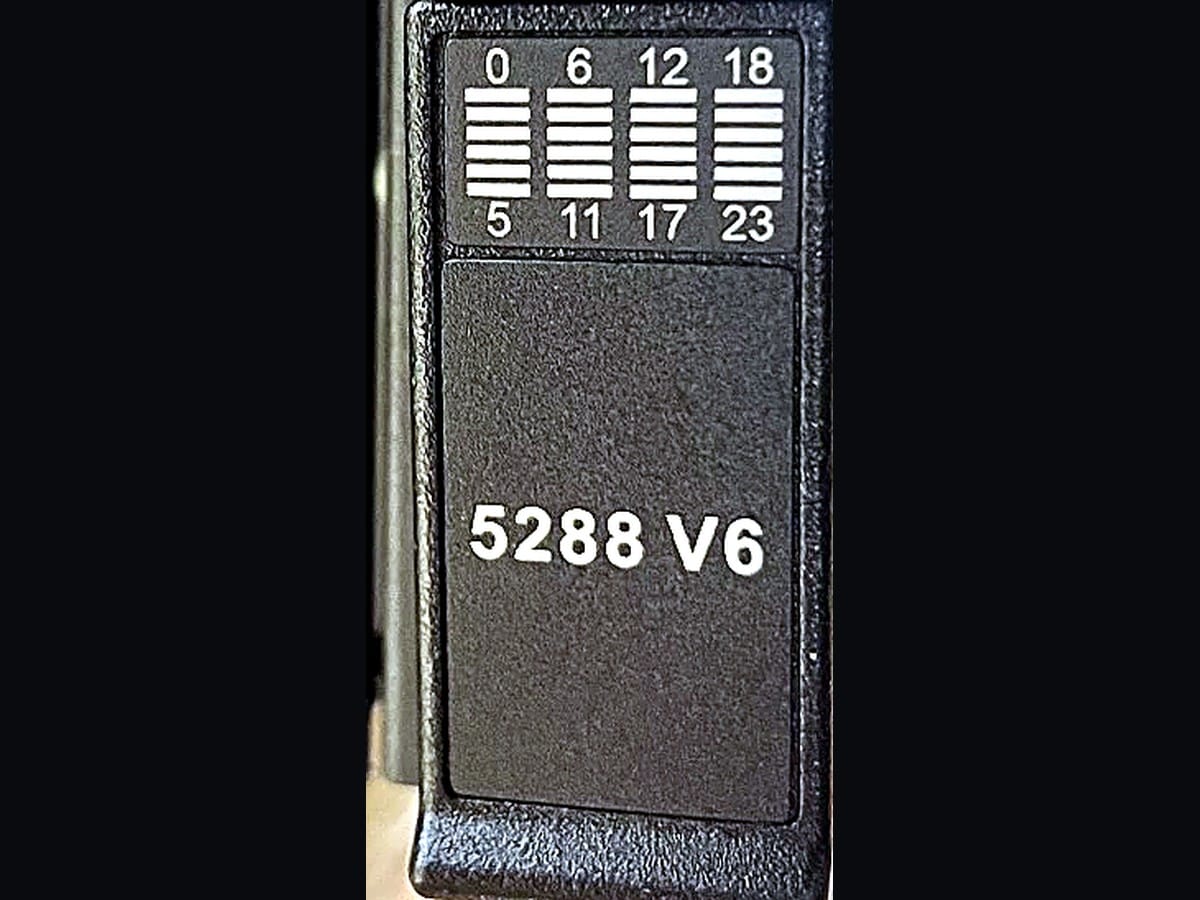

FusionServer 5288 V6 model badge closeup

Model badgeThe factory-printed 5288 V6 identification plate on the front ear.

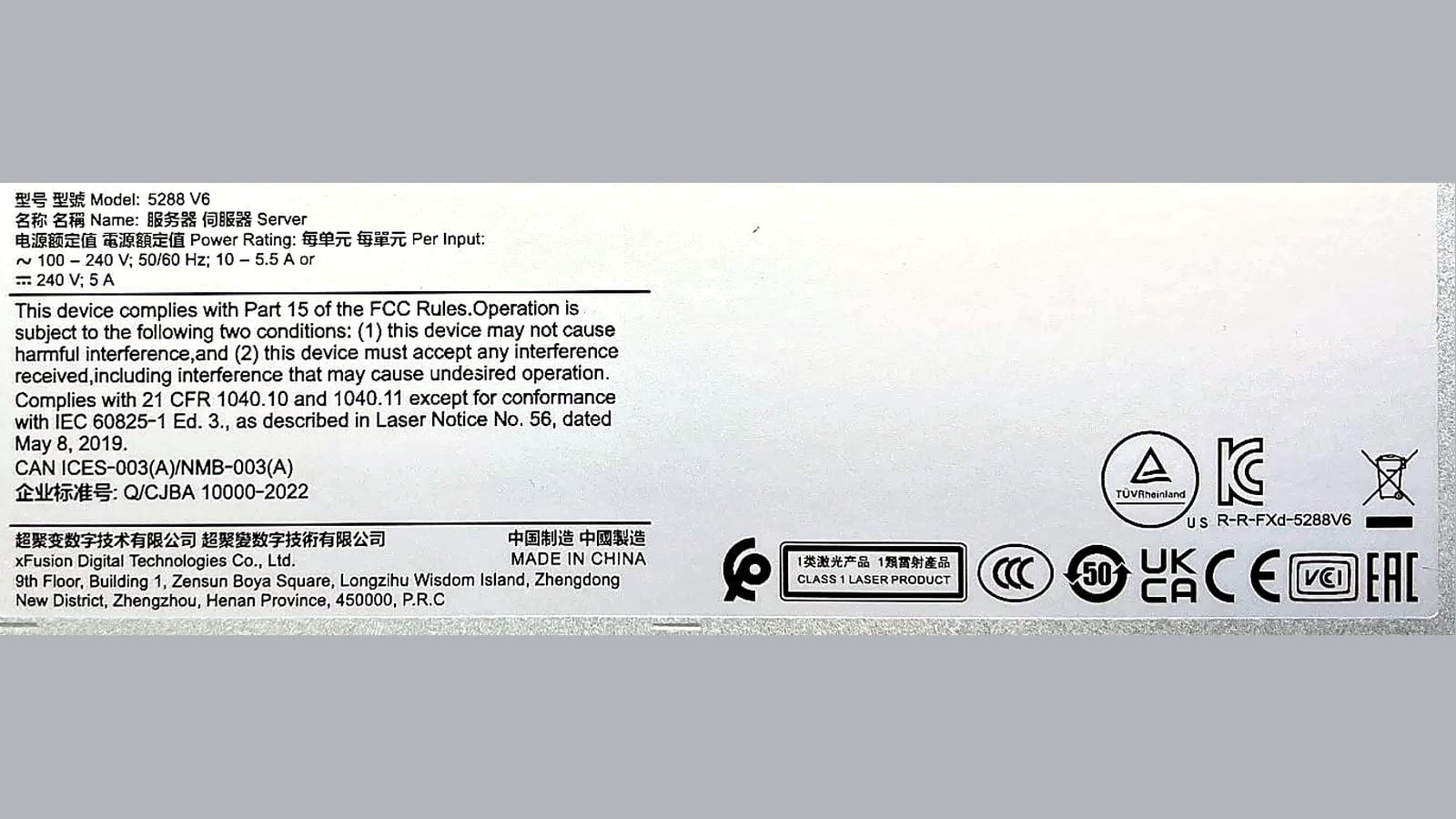

FusionServer 5288 V6 factory specification label, xFusion Digital Technologies, Made in China

Factory specification labelModel 5288 V6, xFusion Digital Technologies Co., Ltd., Made in China — proof of an authentic factory unit.

Typical workloads

Cold data & archive

Long-term retention and historical-data archiving at low cost. For archives that are written once and read rarely, the CPU generation barely matters — capacity, reliability and $/TB do. The mature Ice Lake platform lets you fill a rack with terabytes at the lowest entry price while keeping data on disk and instantly retrievable, rather than locked away on tape.

Video surveillance

Storage for video analysis and surveillance recording platforms. A single 4U node can absorb continuous streams from many cameras while meeting long retention windows. The remaining cores can handle motion indexing or export clips for review, so the recorder is not merely a passive disk shelf.

Cloud storage

Dense nodes for object, file and software-defined storage. Deploy the 5288 V6 as a capacity node in Ceph, MinIO or similar clusters, behind all-flash front-end nodes. Bulk replicas and erasure-coded data lands here, lowering the overall $/TB of the pool without changing the software your team already runs.

Big data

Media/entertainment and finance data processing and repositories. Historical partitions, raw media, compliance records and reference datasets fit naturally on dense disk. Two Xeon Scalable CPUs retain enough compute for periodic batch and analytics jobs that scan the data locally.

Which generation

5288 V6 vs V7 vs V8

The same 4U, 44-bay chassis across three generations, all factory-sealed with a 3-year warranty. The difference is platform age — match it to your budget and existing fleet.

	5288 V6	5288 V7	5288 V8
Processor	3rd Gen Xeon Scalable	4th/5th Gen Xeon Scalable	Intel Xeon 6
Memory	DDR4-3200 (+ Optane)	DDR5-4800	DDR5-6400 / MRDIMM-8000
PCIe	PCIe 4.0	PCIe 5.0	PCIe 5.0 / CXL 2.0
Best fit	Lowest-cost bulk capacity	Best price/feature balance	New clusters, longest lifecycle
Typical buyer	Extending an Ice Lake estate	Want DDR5 without newest-CPU premium	Fresh 5+ year deployments

Choose the V6 to maximise capacity per dollar or to stay consistent with an existing DDR4 fleet; step up to V7 for DDR5 and PCIe 5.0, and to V8 for the newest Xeon 6 platform. Tell us your workload and current servers and we will recommend the generation rather than simply quoting the most expensive option.

Frequently asked questions

Is the 5288 V6 a new or used server?

It is factory-sealed new old stock (NOS), never used and in original packaging. It is not a used or refurbished data-center pull, and carries a 3-year warranty.

How many drives and what memory does it support?

It holds up to 44 hot-swappable 3.5-inch SAS/SATA drives plus 4 NVMe SSDs, with 32 DDR4 DIMM slots at up to 3200 MT/s and optional Optane PMem 200.

What processors does the 5288 V6 use?

One or two 3rd-Gen Intel Xeon Scalable processors (Ice Lake, 8300/6300/5300/4300 series), up to 270W TDP.

Why choose the V6 instead of a newer generation?

For pure bulk and cold storage, workloads are often bound by disk capacity rather than CPU generation. The mature V6 platform offers excellent value and proven reliability at a lower acquisition cost.

How is pricing and delivery handled?

Units are configured to order and sold by quotation. Send your CPU, memory, drive and networking requirements via the contact page and we will reply with price, availability and lead time.

Deployment & purchasing

Planning, delivery and warranty for a 5288 V6 order

Rack and power planning

Dense 4U nodes need coordinated weight, power and cooling planning.

Up to ~57 kg per node — confirm rack rating and use a lift
Redundant 1+1 PSUs up to 2000 W
Depth 748 mm plus cable bend radius
Plan rear hot-aisle clearance for continuous writes

Drives and configuration

We build to your exact bill of materials, not a fixed SKU.

Select drive capacity and RAID/JBOD layout
RAID controller or HBA for software-defined storage
Mix four NVMe front bays with the 44-bay array
Rails, cables and spares can be included

Delivery and lead time

Each server is assembled, tested and shipped in protective packaging. We confirm current lead time and freight for your destination, and can supply customs and project documentation on request.

Warranty and support

Every unit is factory-sealed NOS backed by a 3-year warranty through Beijing Xinchuan Technology. We support diagnostics and replacement parts during the warranty period and can arrange advanced replacement or extended coverage for storage clusters.
